Vacuum and more!

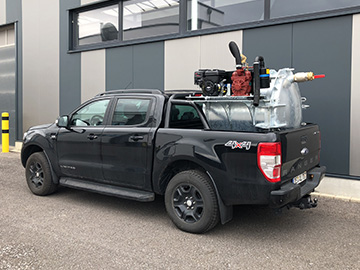

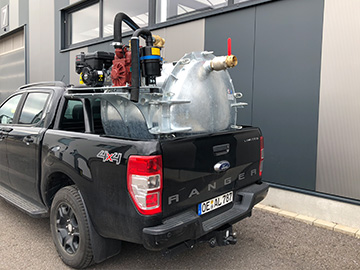

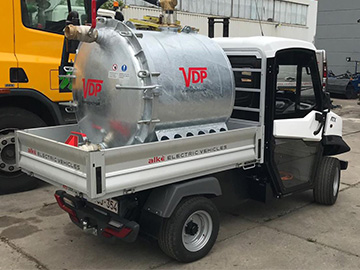

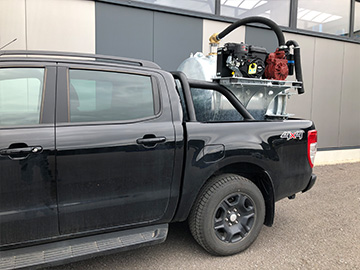

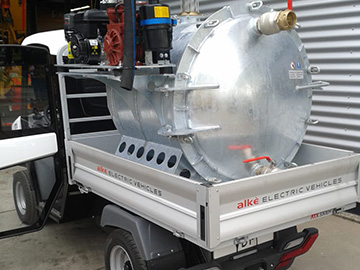

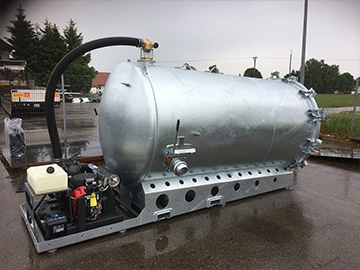

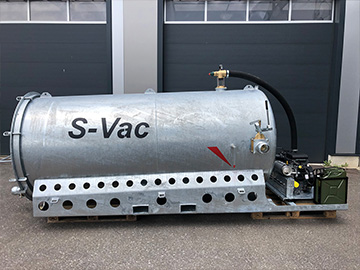

The S-VAC 800 is optimal for use on a smaller loading surface with a load of approximately 1,000 kg.

This vacuum suction system can be flexibly used from pickup to operation on an undercarriage for a lifting truck.

Also available with E-motor 230 V.

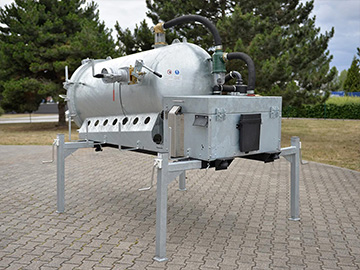

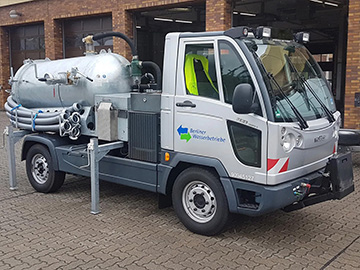

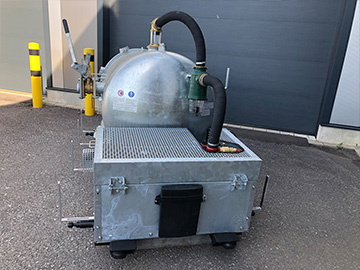

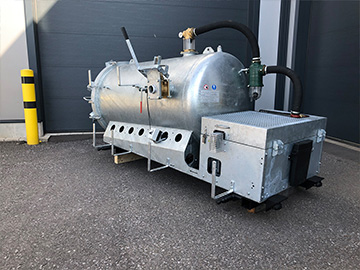

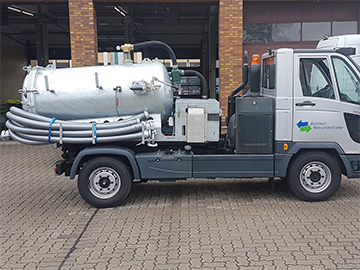

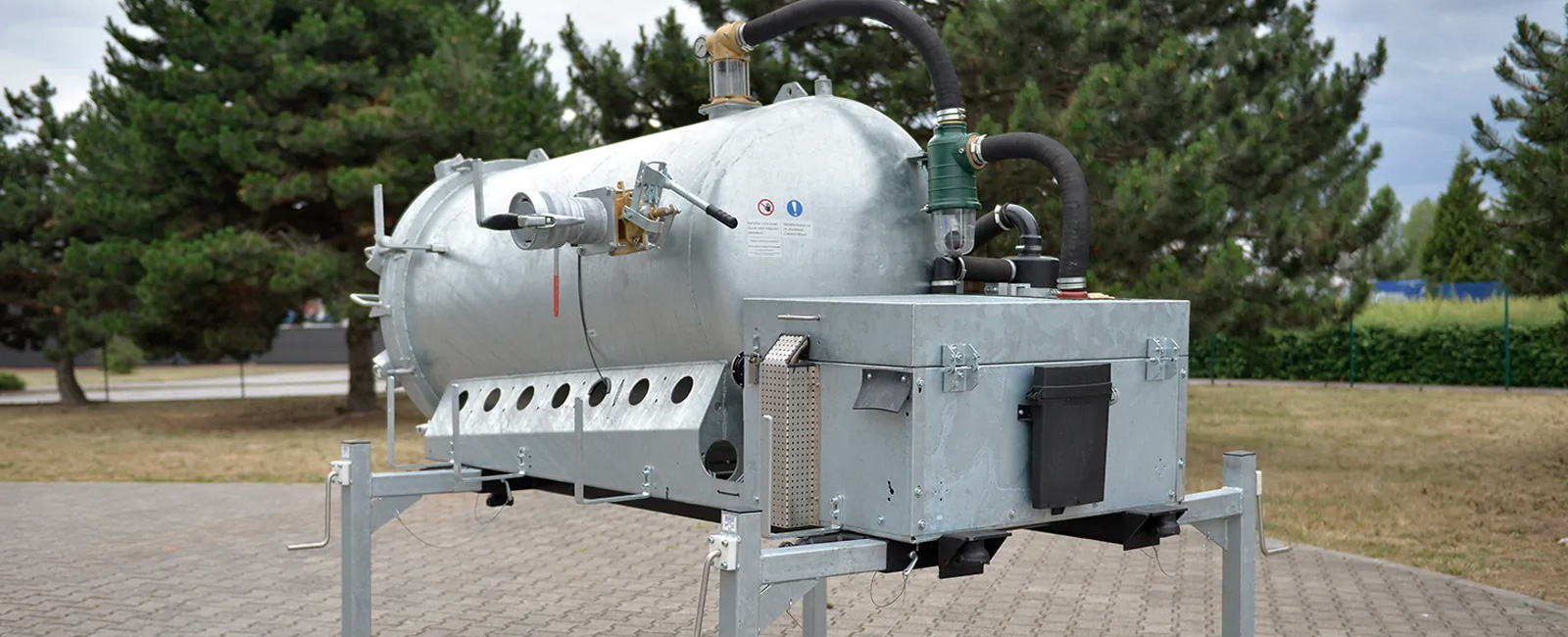

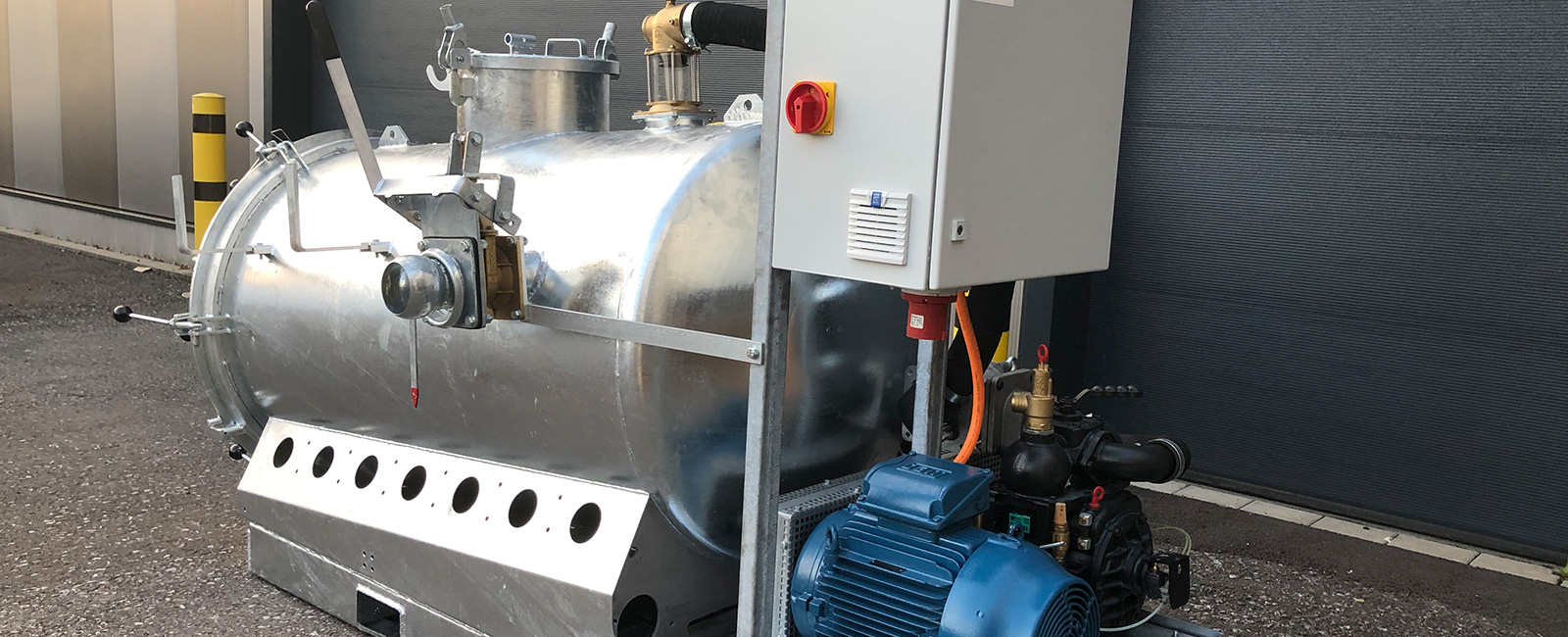

The S-VAC with a capacity of 1,500 liters is adapted to fit on a frame of a 2019 multicar.

Adjusted exhaust gas routing, larger hose holder and a swap body system are only some of the equipment characteristics.

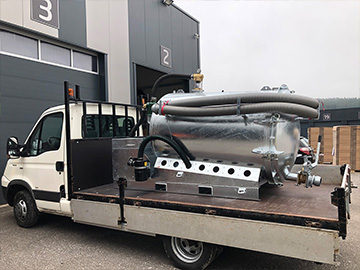

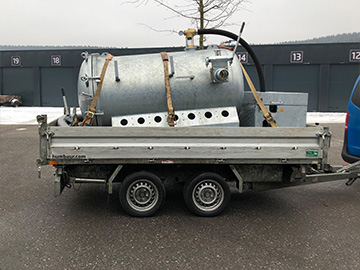

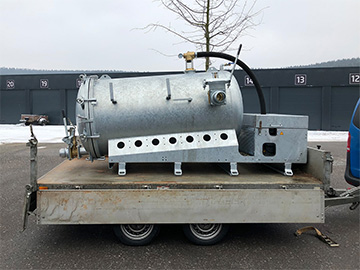

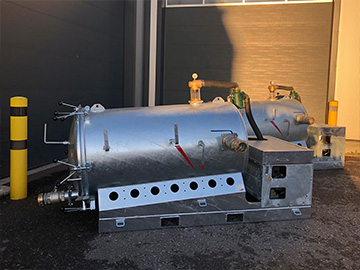

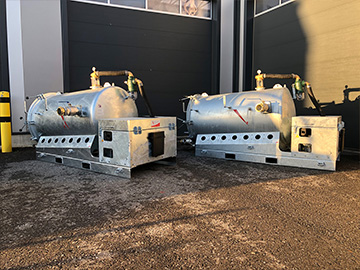

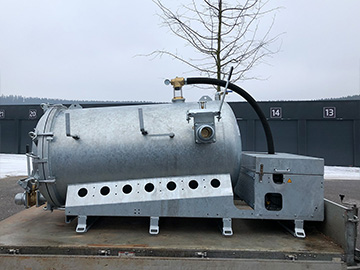

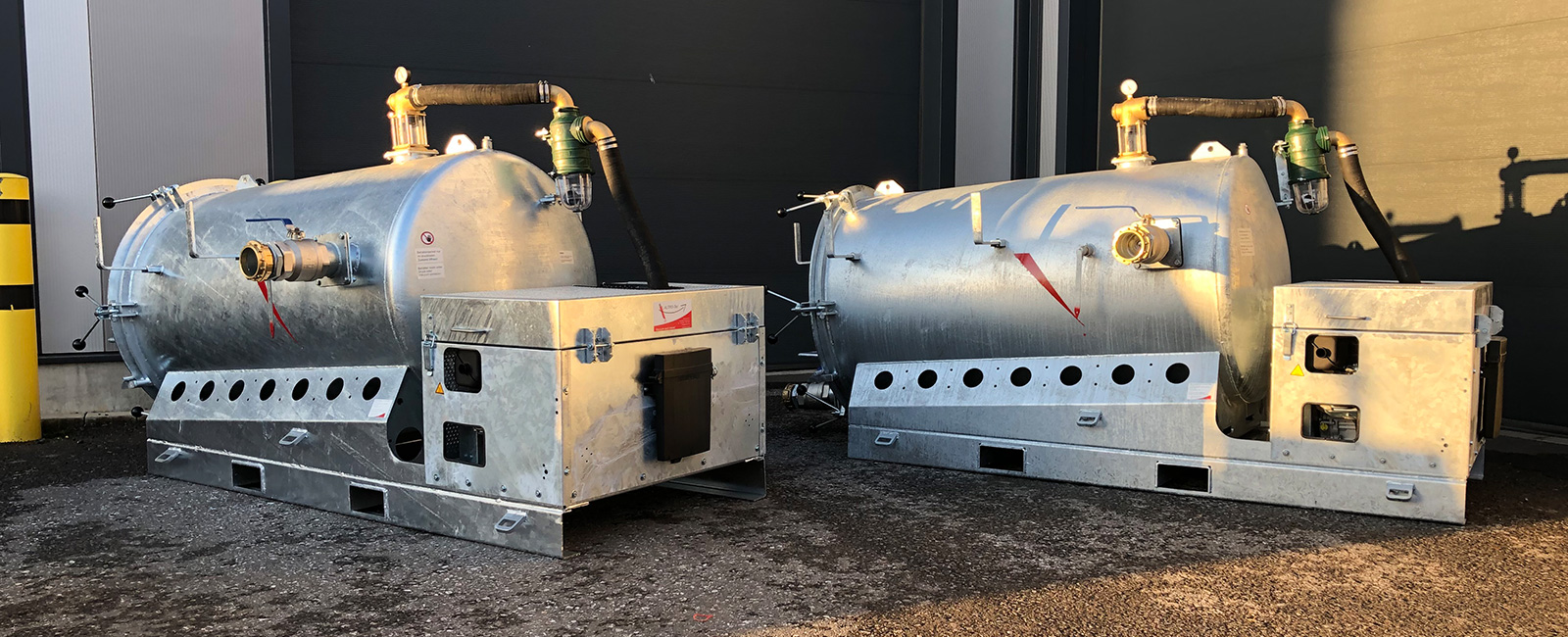

The S-VAC 1500 offers the perfect solution for any field of application. With an empty weight of approximately 800 kg it can be mounted or tied down on almost any platform. Can be adjusted for all optional equipment as well as a hose reel or high-pressure cleaner and built-on water tank.

Standard equipment:

• one 10-HP Briggs & Stratton motor with E-start
• vacuum pump with a suction capacity of 3,600 l/min.
• 12 V battery that is charged via the alternator

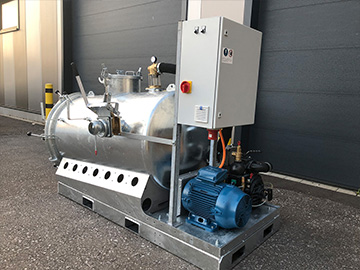

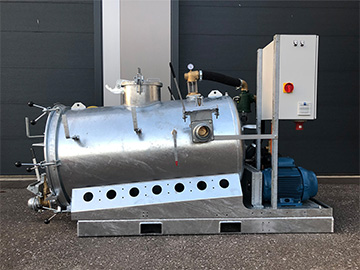

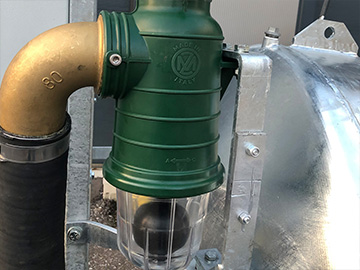

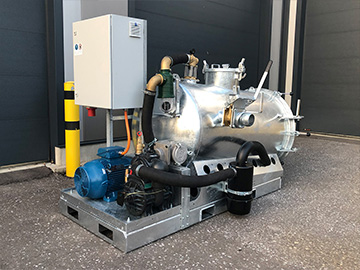

The S-VAC 1.5 m³ was designed to suction sewage sludge in a refuse incineration plant with a height difference of up to 7-meter depth and 20-meter distance.

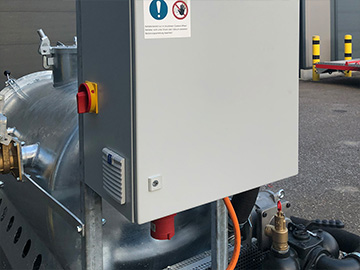

Driven by an E-motor, which is controlled via a frequency converter, it powers a vacuum compressor with a suction capacity of 9,500 l/min.

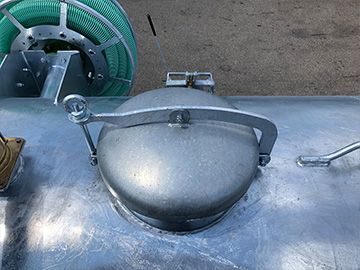

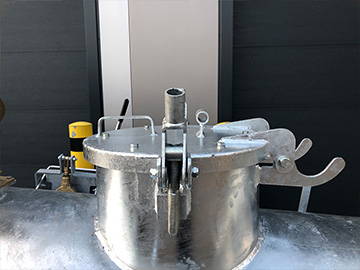

A large manhole in the lid, is perfect for inspections and cleaning, without the need to open the tank lid.

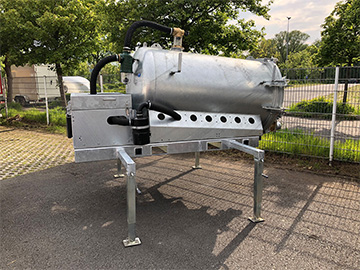

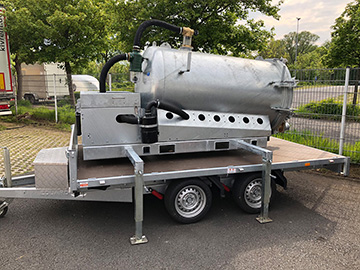

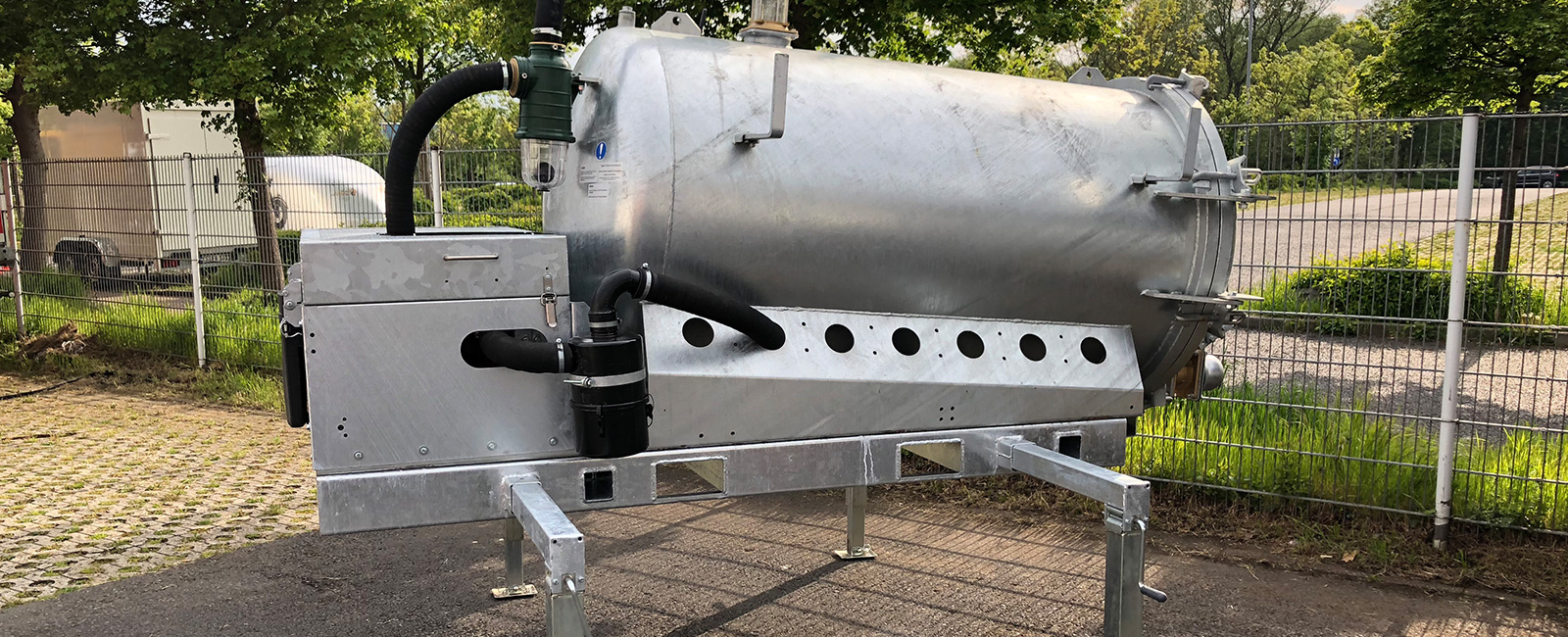

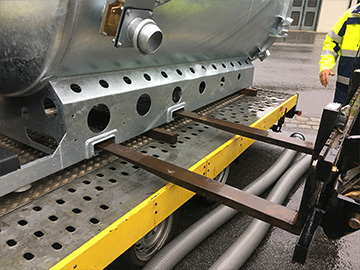

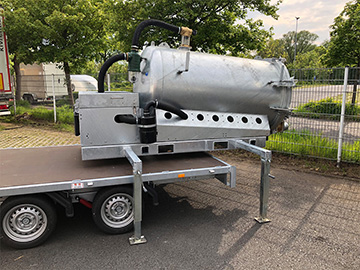

The S-VAC with swap body system is a standard vacuum suction system which is built on a special lower frame.

This system is also possible for other vacuum suction systems and offers the possibility of loading and unloading the tank without auxiliary means.

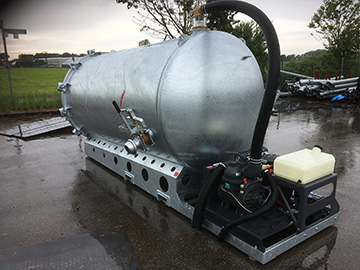

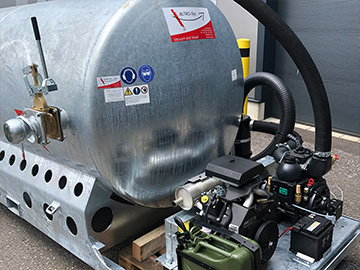

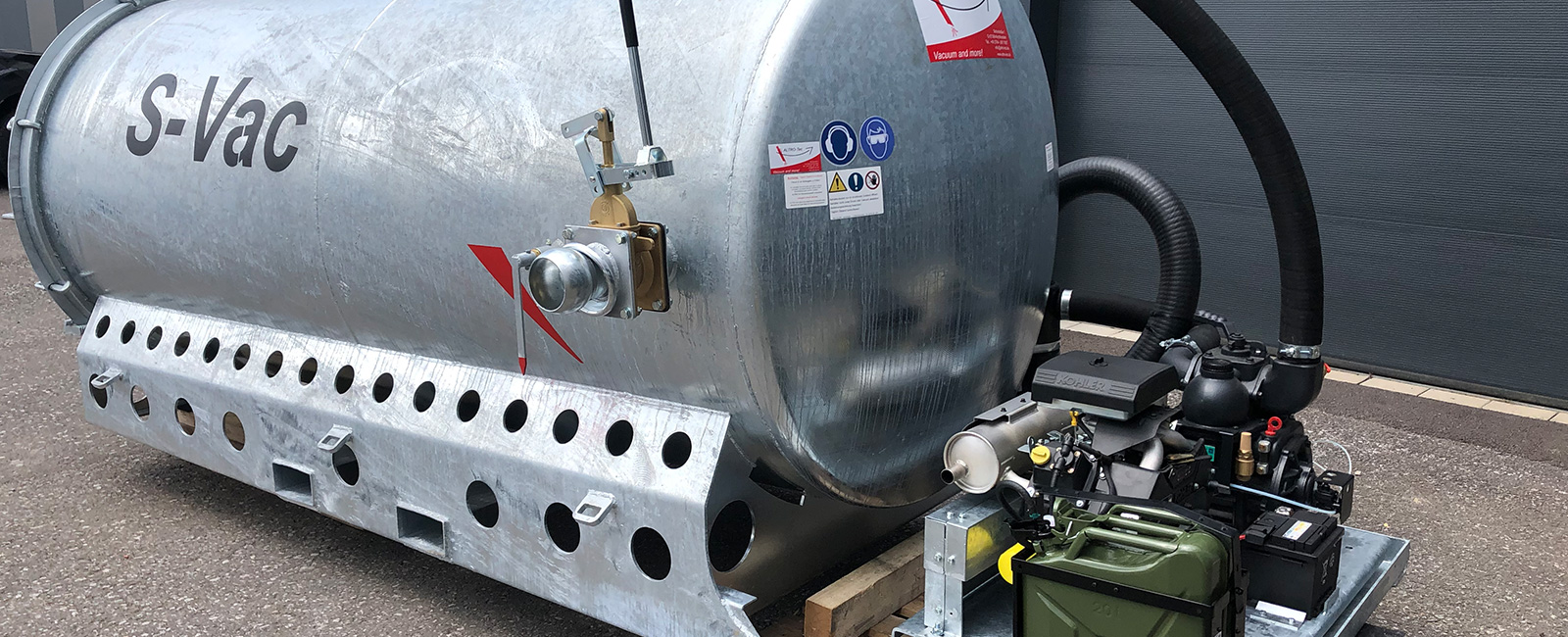

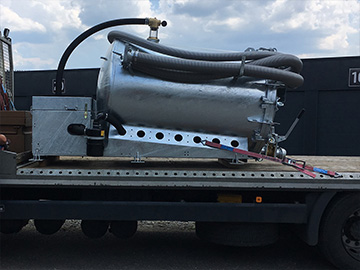

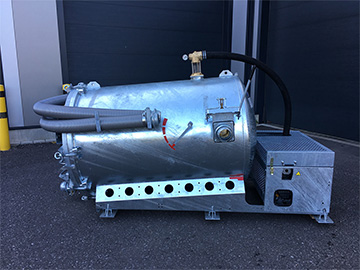

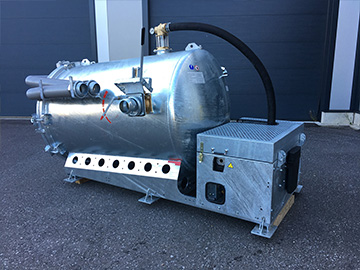

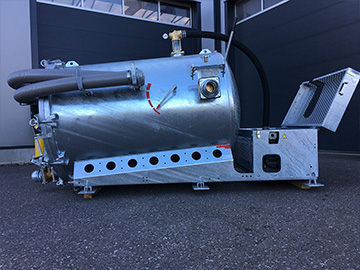

The S-VAC with a capacity of 2,000 liters – with an empty weight of approximately 900 kg, can be mounted or tied down on almost any platform. Can be adjusted for all optional equipment such as a hose reel or high-pressure cleaner and built-on water tank.

Standard equipment:

• one 10-HP Briggs & Stratton motor with E-start
• vacuum pump with a suction capacity of 3,600 l/min.
• 12 V battery that is charged via the alternator

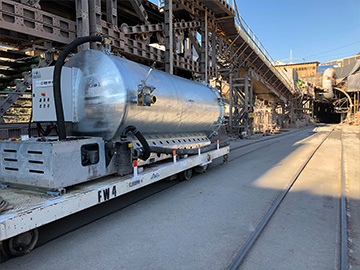

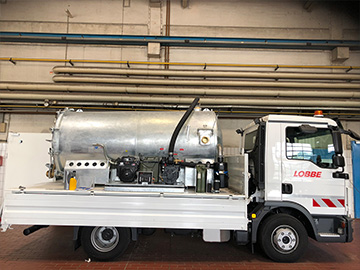

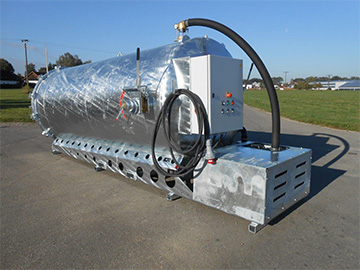

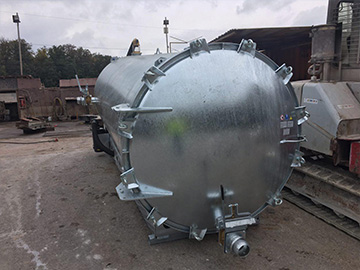

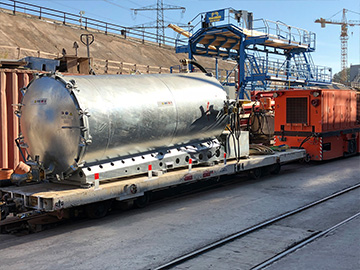

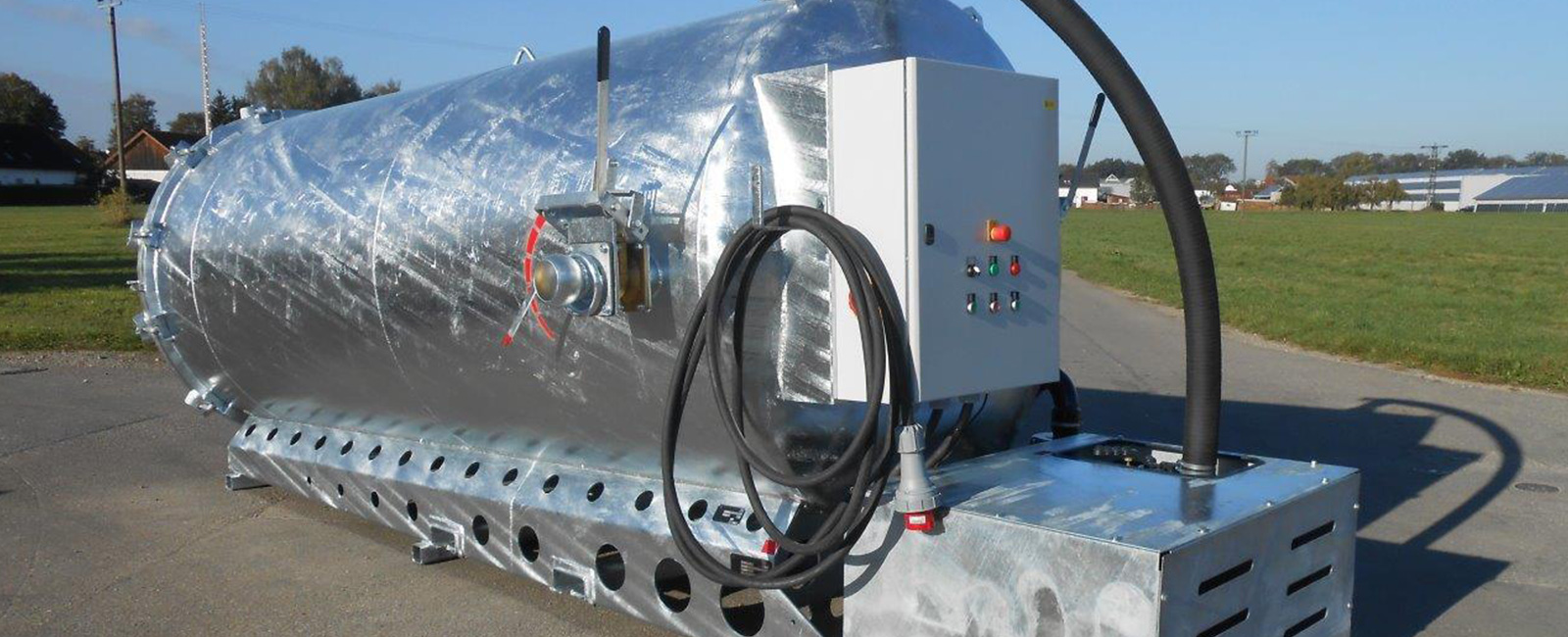

The vacuum suction system with a capacity of 5,000 liters was designed for the suction and transportation of cement slurry from the tunnel
for the major project Stuttgart 21.

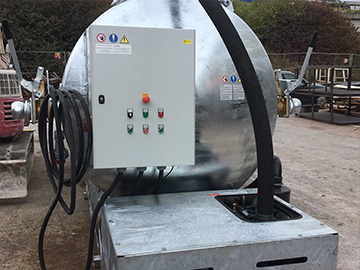

In order to prevent the emission of exhaust fumes, the electric motor with 63 A is integrated, which drives the compressor with a suction capacity of 9,500 l/min.

Equipped with a ballast system, the vacuum compressor is suitable for continuous operation at a vacuum of 0.6 bar.

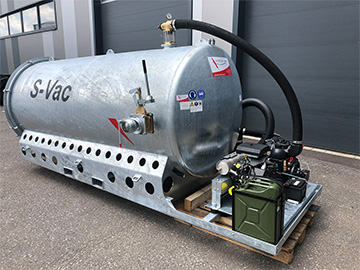

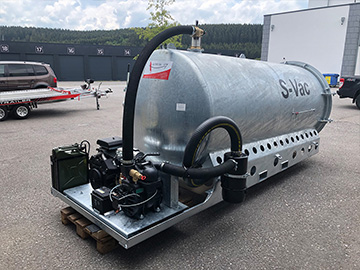

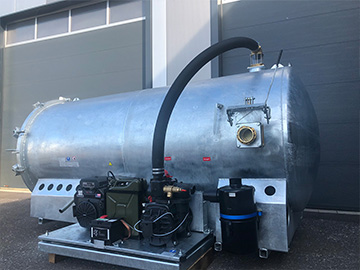

The S-VAC 5.0 m³ is versatile in use and can be combined with different types of drives.

The different structure and drive options offer a large range of application for construction sites or transport on trucks.

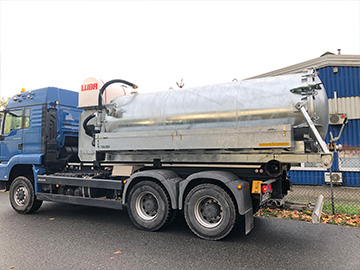

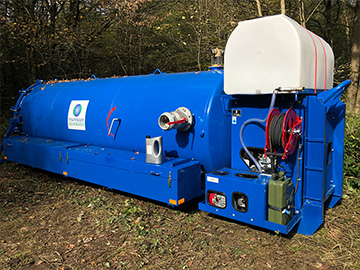

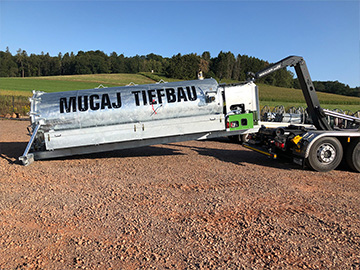

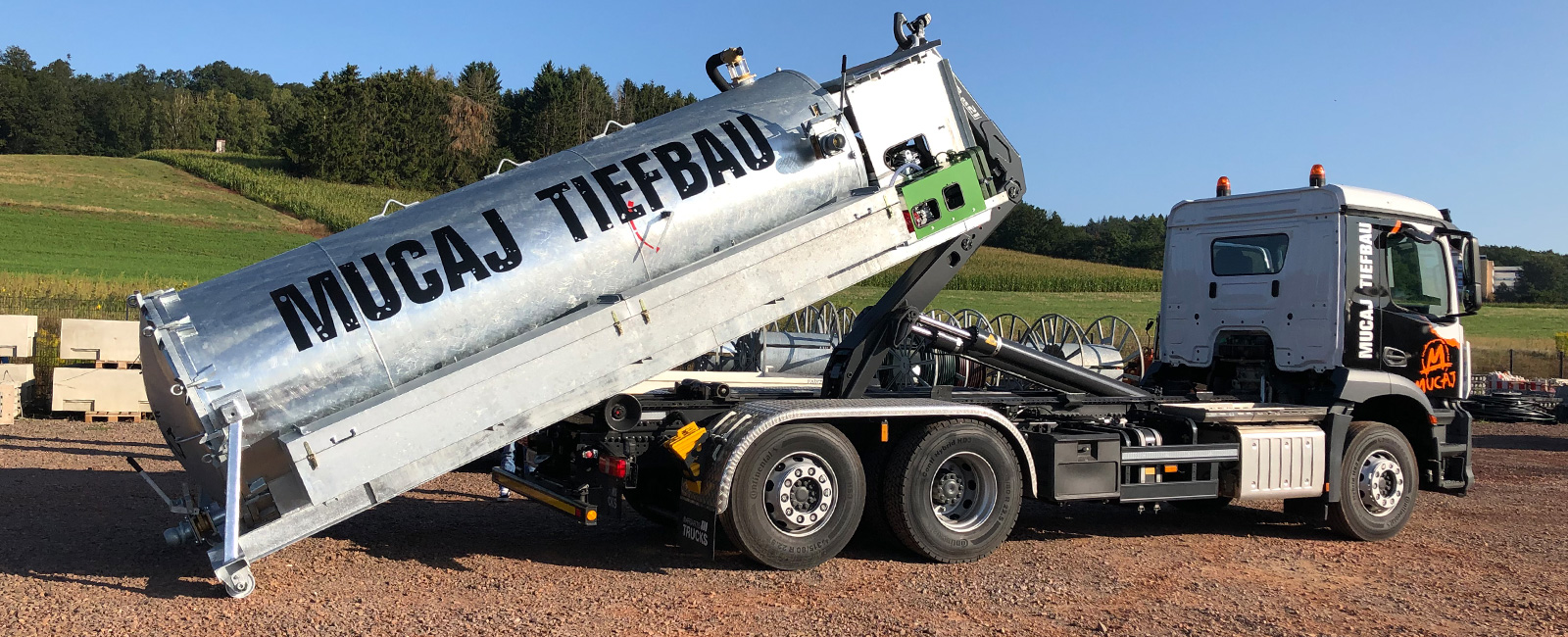

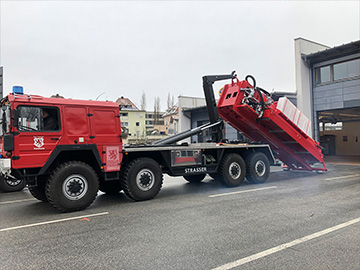

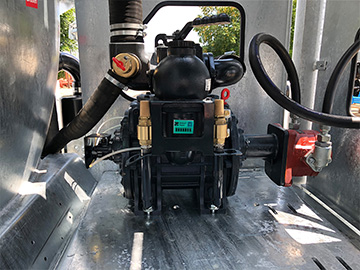

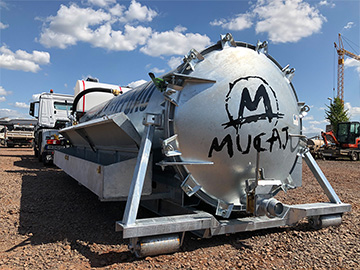

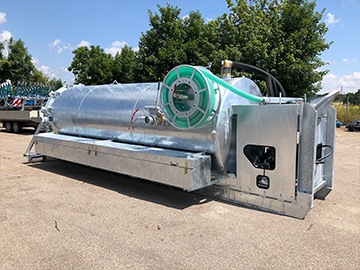

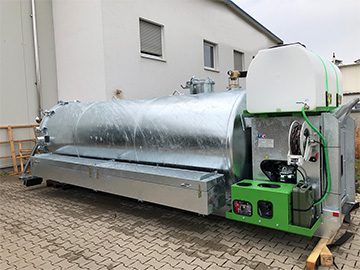

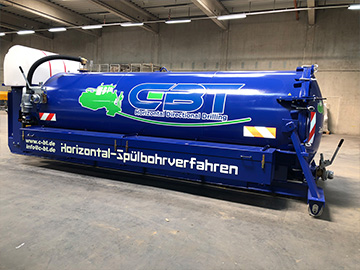

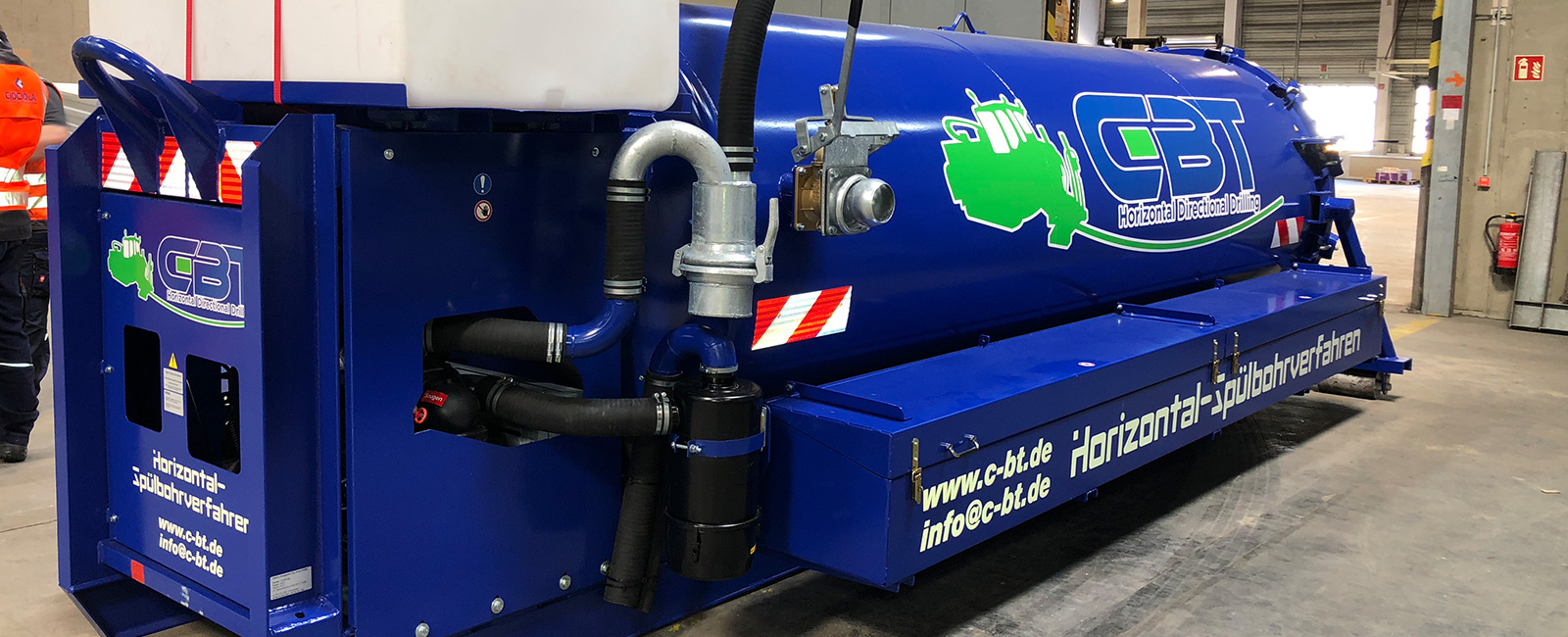

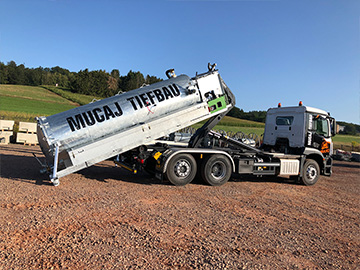

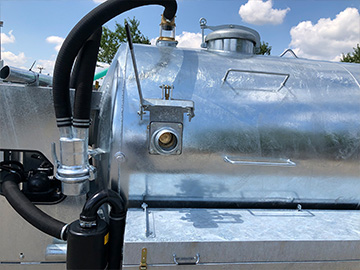

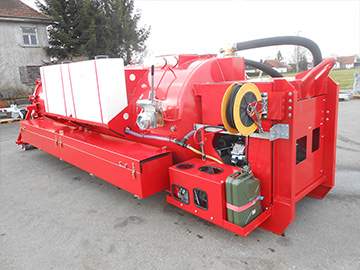

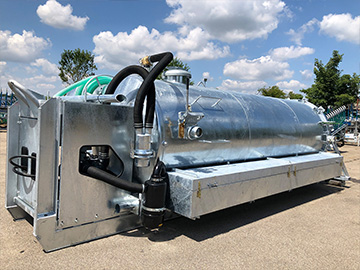

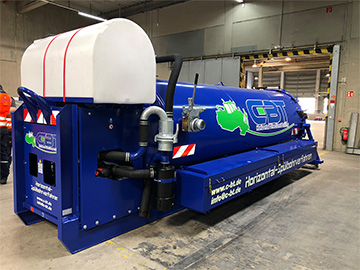

These vacuum suction systems for hook lifts are available in various capacity classes and can be adjusted to your requirements, from 6,400 liters to 14,000 liters.

Telehoist load lugger with vacuum suction system as a structure according to DIN 30722.

Adjustable equipment and drive types include high-pressure cleaners to hose reels and acoustic filling level indicators.

Customized design in coordination with our customers, and adapted to the relevant operation site, this S-VAC offers a large volume and different types of drives for the vacuum compressor.
