Vacuum and more!
M-Vac mobile vacuum suction systems
Our mobile vacuum suction systems offer the right solution for any area of application.
We offer the individual provision of a vacuum suction system for your requirements, from standardized and TÜV-approved 2,700 kg and 3,500 kg undercarriages to customer-specific special constructions.

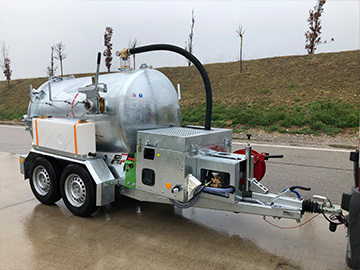

M-Vac ready for the construction site

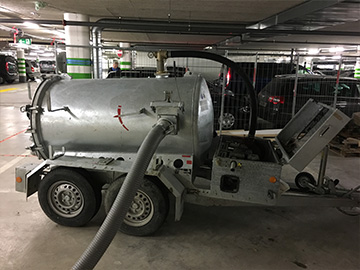

Thank to its low height, it is also idea for use in parking garages

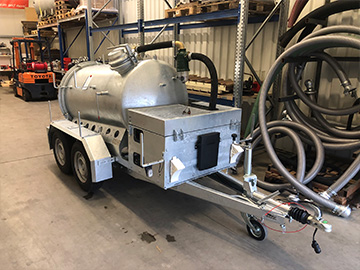

Can be supplied with lockable tool box

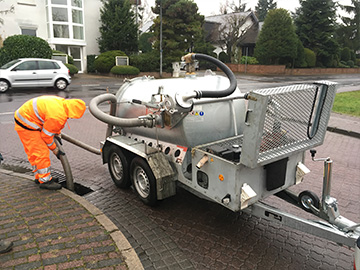

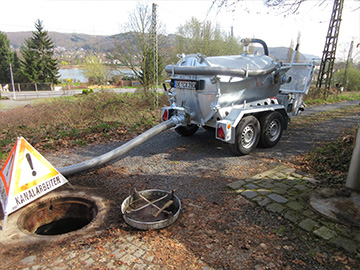

For use in sewer work
Stainless steel filter for cleaning of sink shafts
Painting in all RAL colors

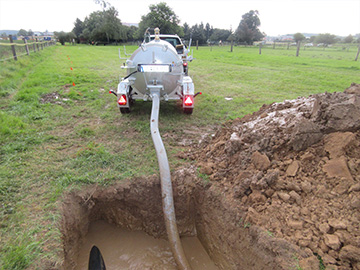

Suction of drill sludge
Durable siphon separator
Ready for the construction site

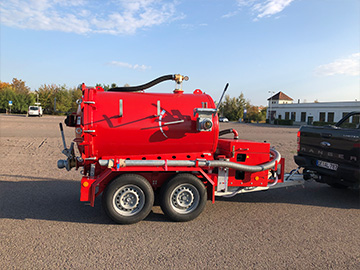

Painted in RAL 3000
Suction of Bentonite drill sludge
With siphon separator and cleaning hatch
12 - 12
<
>

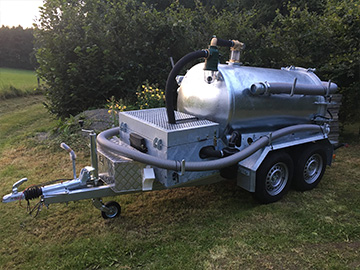

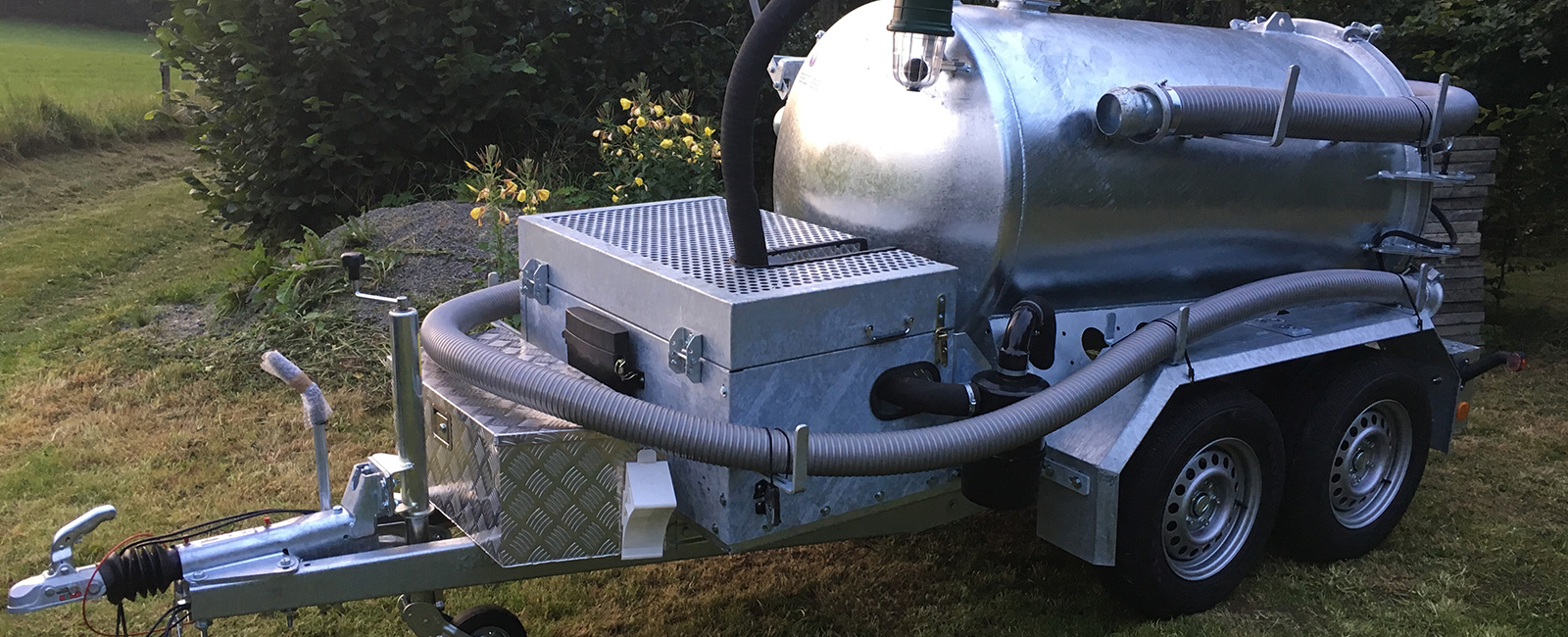

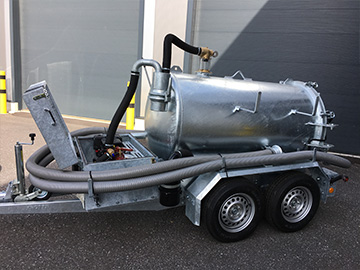

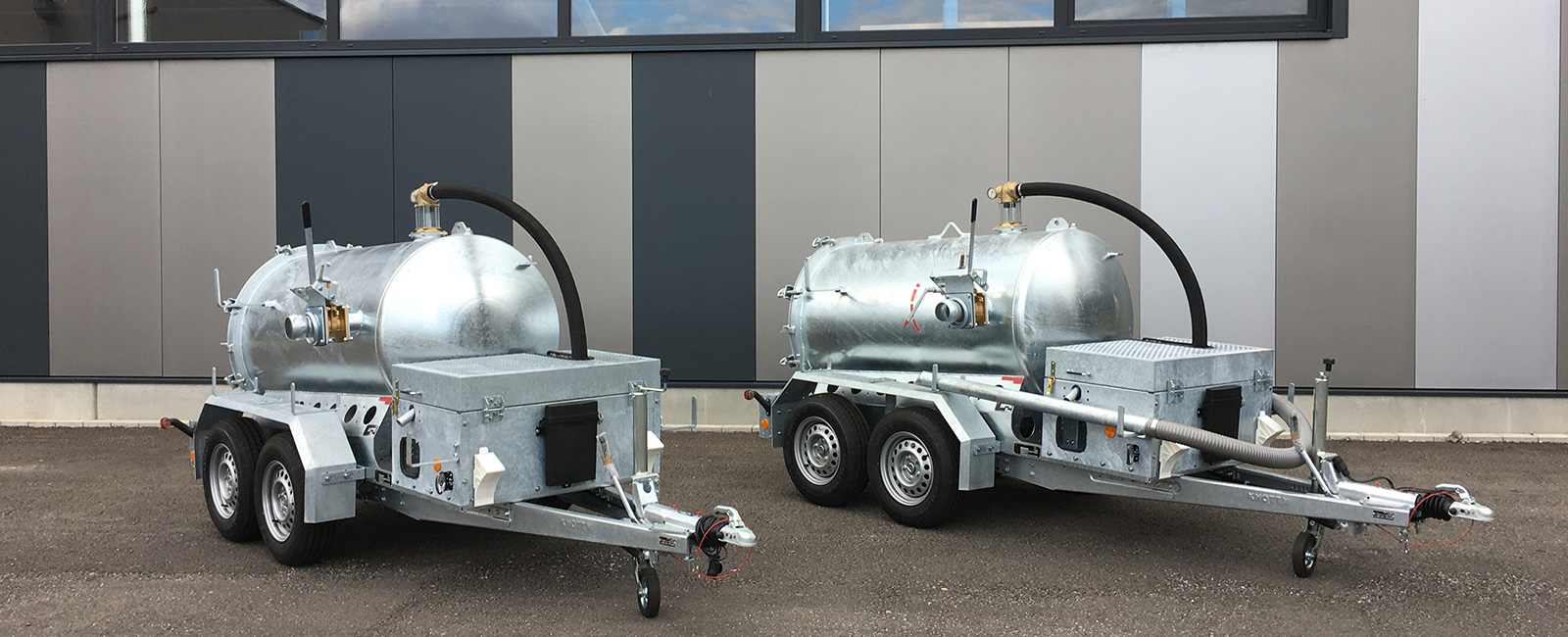

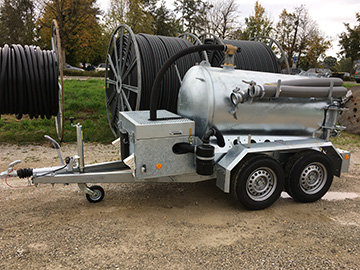

M-VAC 1500 (1.5 m³ 2,700 kg undercarriage)
The M-VAC 1500 is the all-rounder on the construction site.
With a maximum total weight of 2,700 kg, the trailer may be pulled by almost all larger vehicles.
The low height of 2.0 meters is another benefit, which makes it easy to park in parking garages.
Standard equipment:
- one 10-HP Briggs & Stratton motor with E-start
- vacuum pump with a suction capacity of 3,600 l/min.
- 12 V battery that is charged via the alternator
With inside water tank and high-pressure cleaner
Equipped with a suction lance, extension hoses and high-pressure cleaner

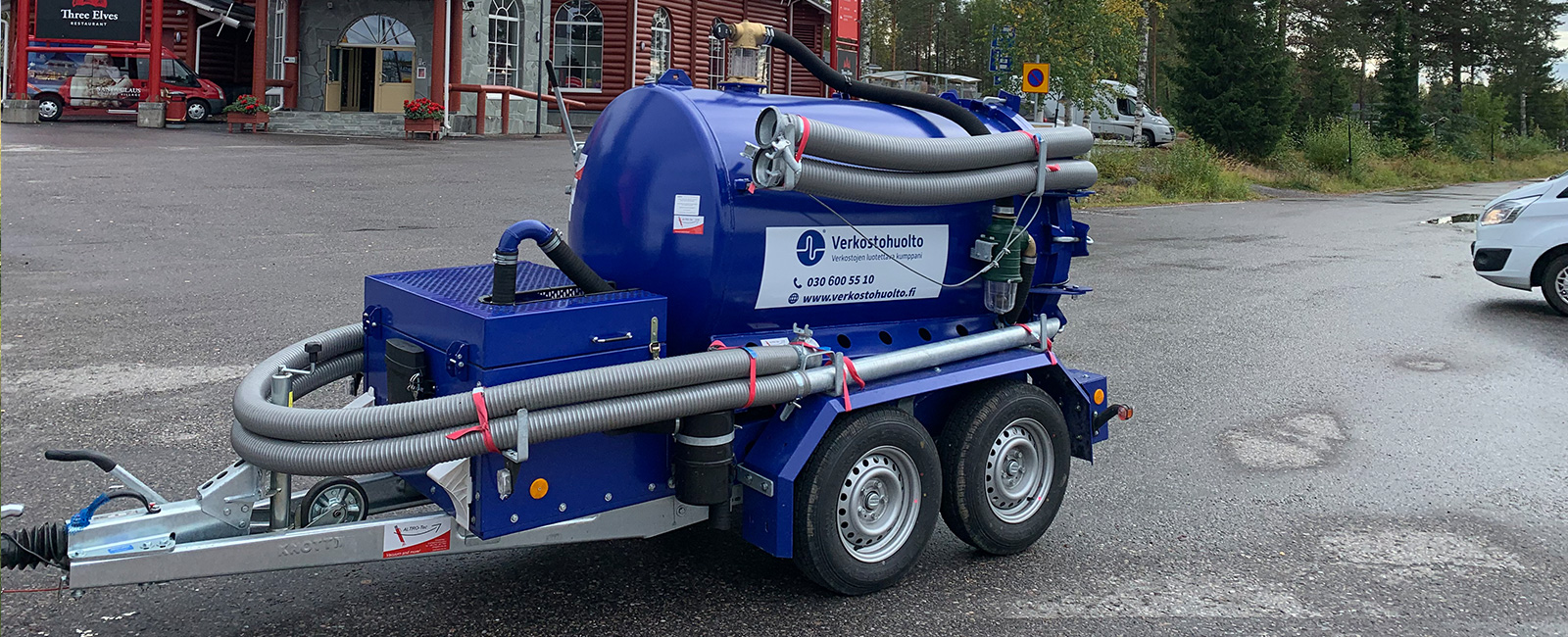

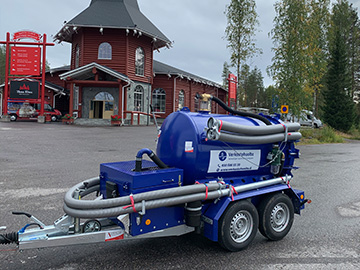

Delivery of a tank to a customer in Finland
With high-pressure cleaner and additional tanks on the fenders
12 V electro-hydraulics for tipping

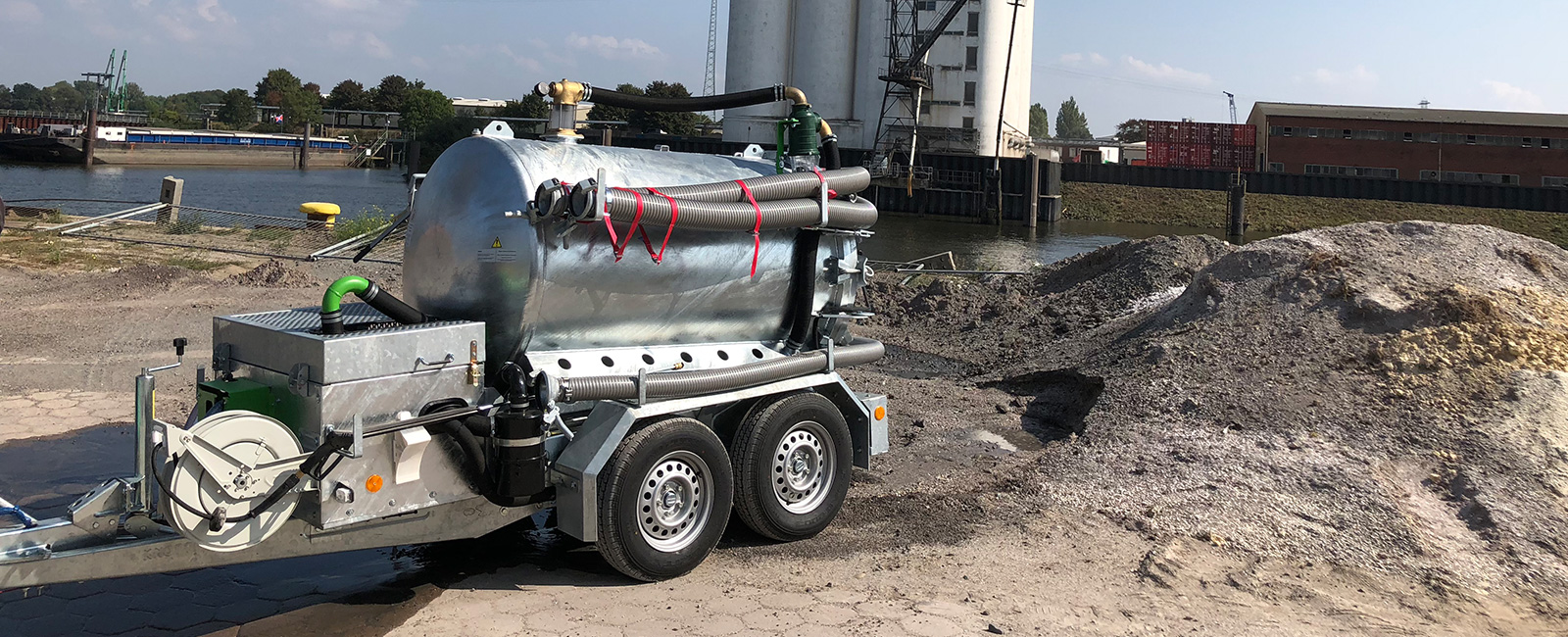

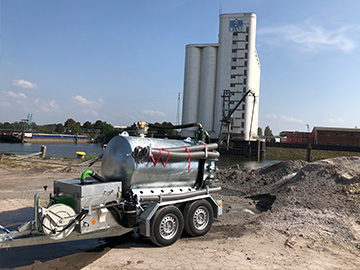

Application at the port of Hamburg

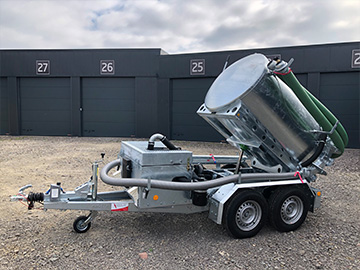

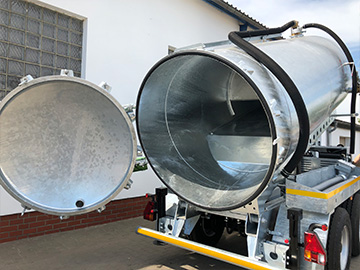

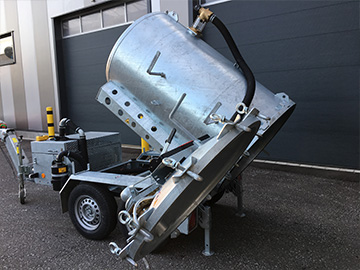

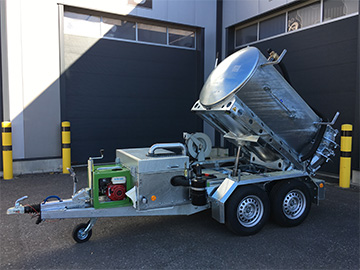

Easy cleaning in tipped condition

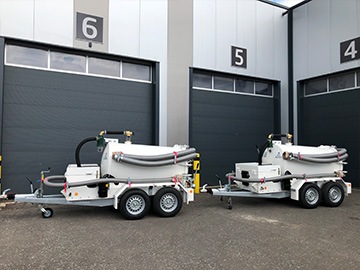

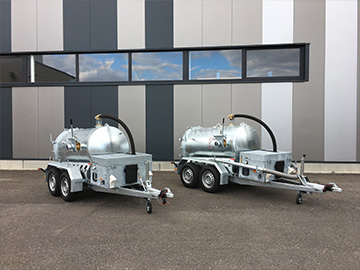

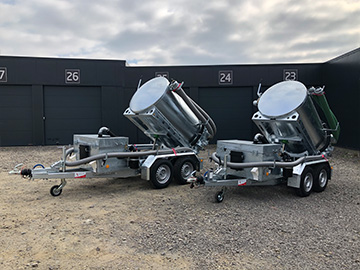

Two times M-VAC 1800

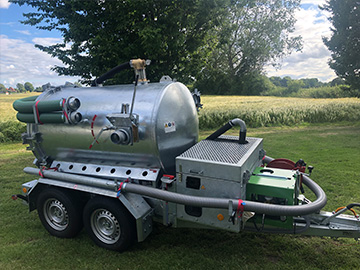

With suction lance and extension hose

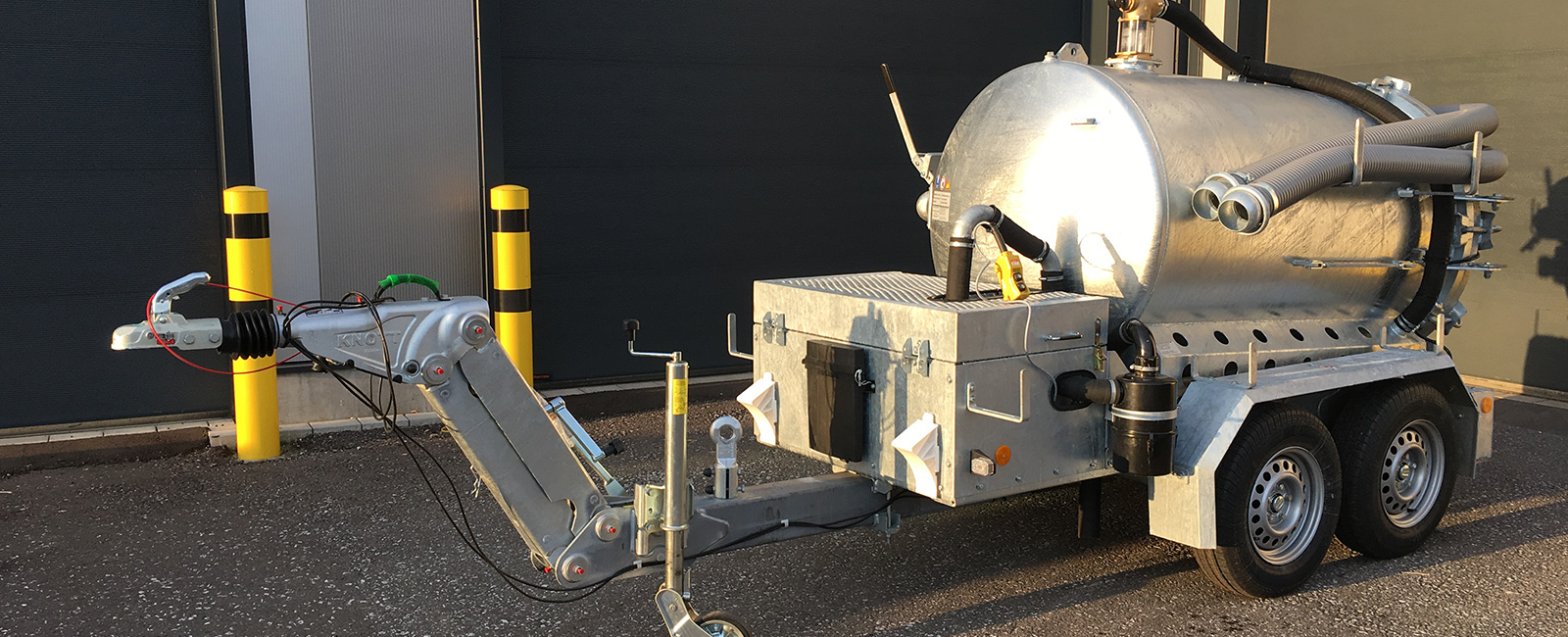

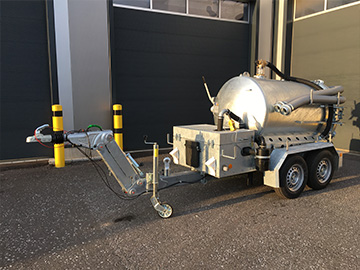

Height-adjustable drawbar for operation behind a lorry

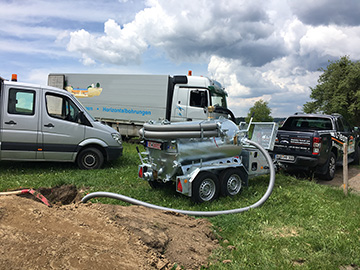

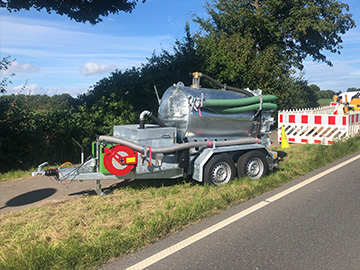

Application at the construction site
11 - 11
<
>

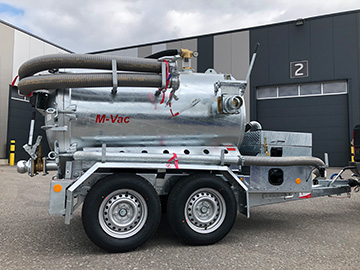

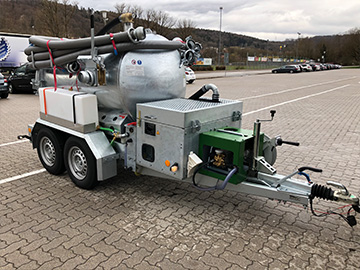

M-VAC 1800 rear tipper (1.8 m³ tipper 3,500 kg undercarriage)
The M-VAC 1,800-liter rear tipper is designed for easy cleaning, especially for muddy and sandy liquids.
Standard equipment:
- one 10-HP Briggs & Stratton motor with E-start
- vacuum compressor with a suction capacity of 3,600 l/min.
- large 12 V battery that is charged via the alternator
- 12 V electro-hydraulics for the telescope-tipping cylinder

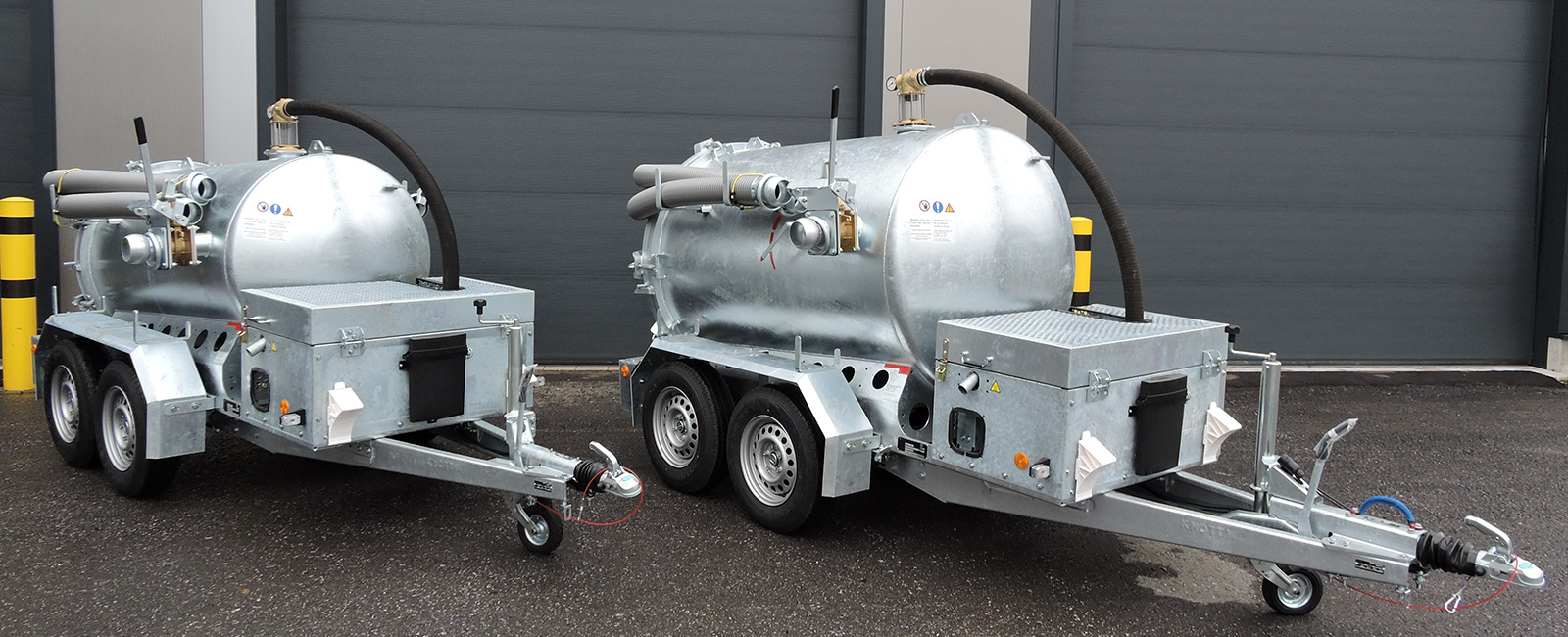

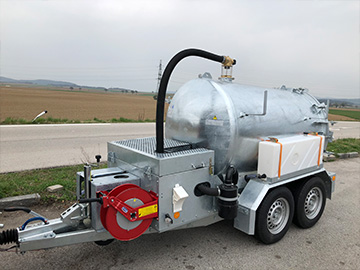

Standard M-VAC 2m3
3,500 kg Knott undercarriage
With high-pressure cleaner and hose reel
Stainless steel filter for protection of the compressor when used with dusty materials
Two times 50 l fresh water on the fenders

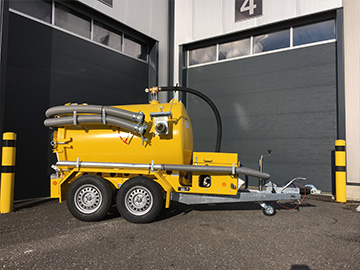

Painted in RAL 1003
Standard tanks

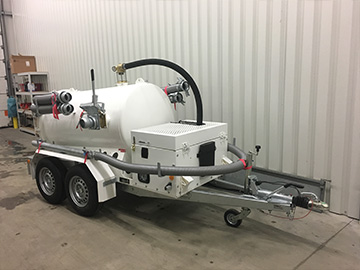

Painted in pure white RAL 9010 and siphon separator
Ready for delivery
9 - 9
<
>

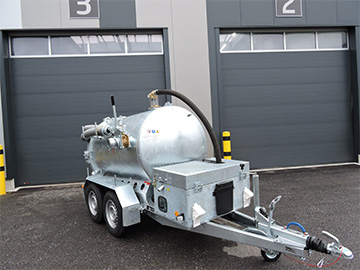

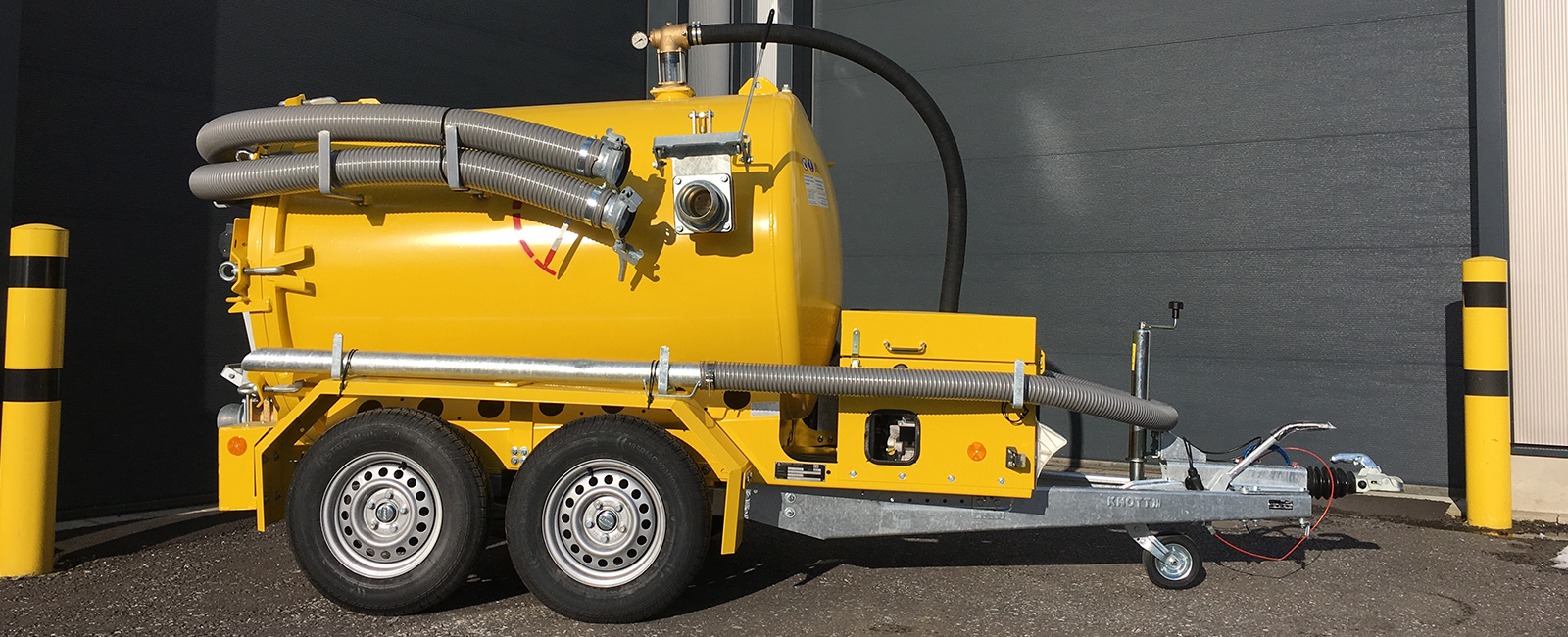

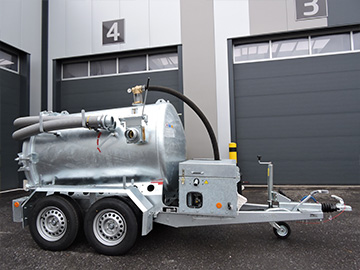

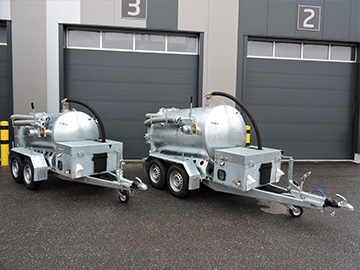

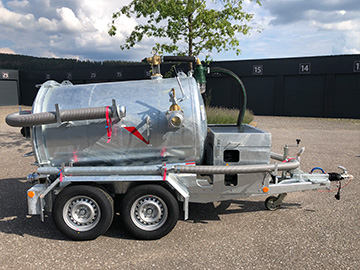

M-VAC 2000 (2.0 m³ 3,500 undercarriage)
The M-VAC 2000 comes with largest volume in the 3.5 ton class,
Built on a 3,500 kg undercarriage, this M-VAC has versatile applications.
Standard equipment:
- one 10-HP Briggs & Stratton motor
- vacuum pump with a suction capacity of 3,600 l/min.
- 12 V battery that is charged via the alternator
Reel with 25m suction hose Ø 3 inches
Two times extension hose Ø 3 inches
Tool boxes on the fenders

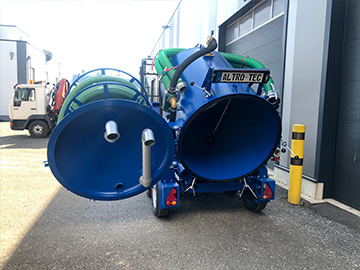

Easy cleaning in tipped condition
Painted and completed design

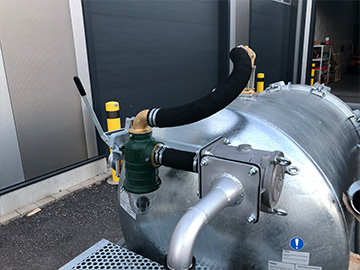

The swan neck system prevents the liquid from flowing back
Sturdy design and enclosed lamps
7 - 7
<
>

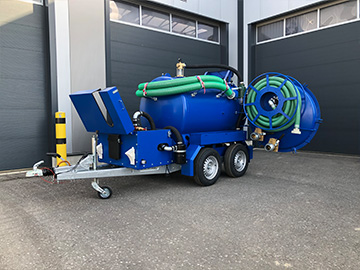

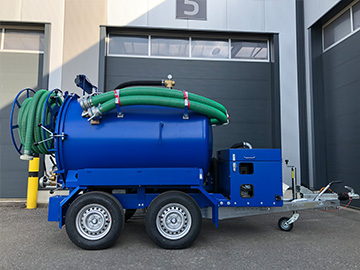

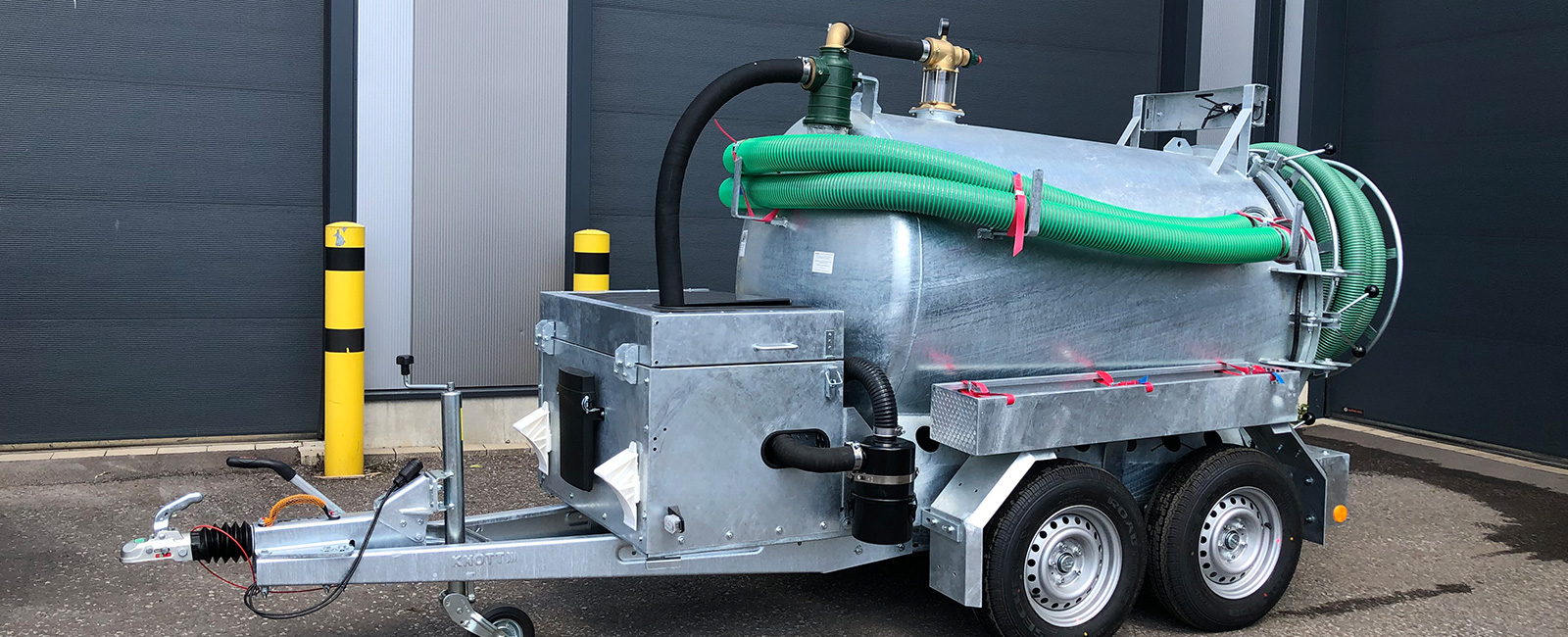

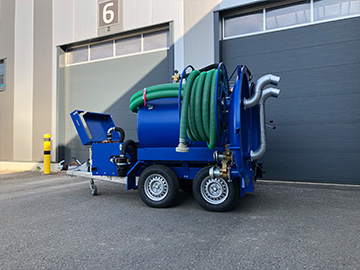

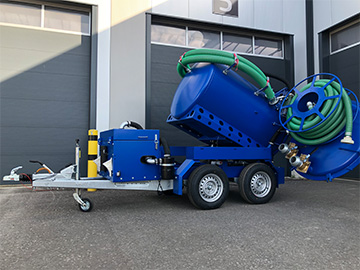

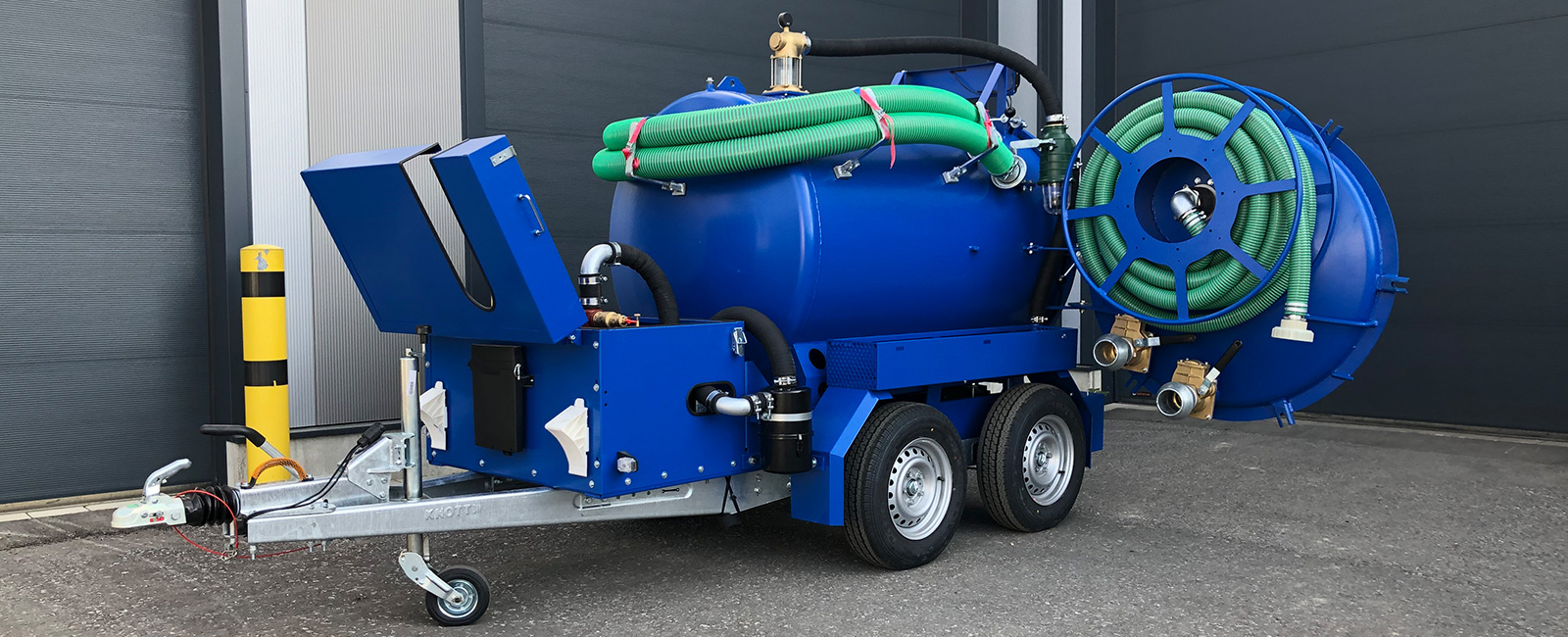

M-VAC 2000 (2.0 m³ rear tipper with hose reel, 3,500 kg undercarriage)
The M-VAC 2000 as a rear tipper with hose reel is designed for sewer cleaning. With its 25m long suction hose and lockable 1m suction lance, it is also suitable for larger distances to the operation site.
Thanks for the 12 V electro-hydraulics, the tank can be tipped and is therefore easy to empty and clean.
Standard equipment:
- 10-HP Briggs & Stratton motor with E-start
- vacuum compressor with a suction capacity of 3,600 l/min.
- large 12 V battery that is charged via the alternator
- 12 V electro-hydraulics for the telescope-tipping cylinder
- Supported reel with 25m suction hose and lockable suction lance

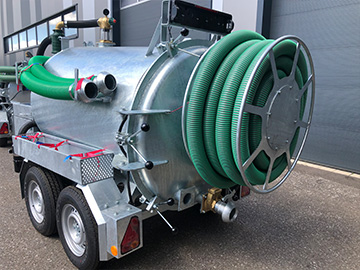

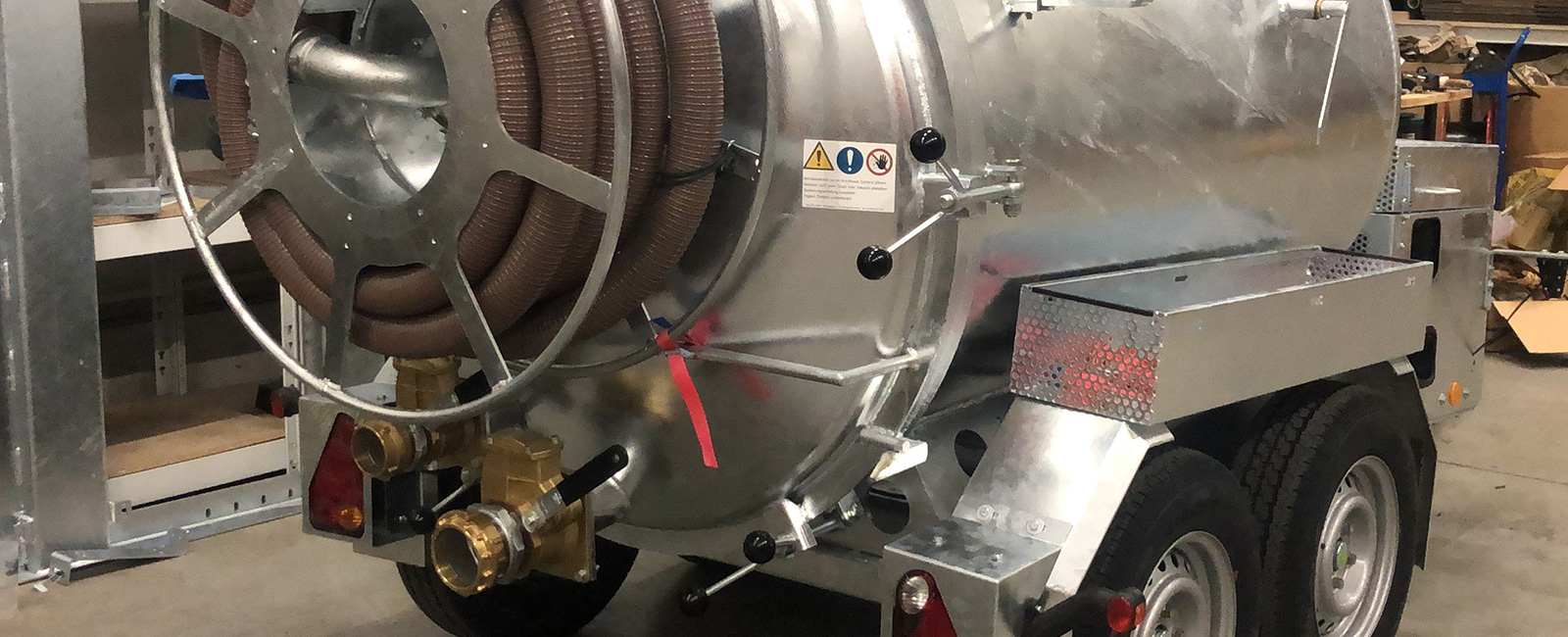

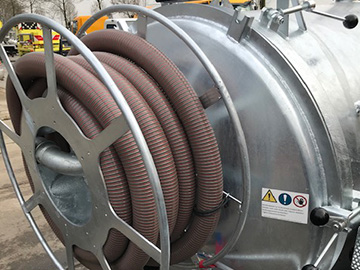

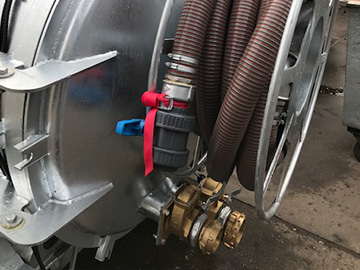

Hose reel with 25m suction hose
Toggle closure for easy opening of the lid
3-inch ball valve with suction lance made of PE
4-inch outlet at the bottom of the lid
Hose holder for additional hoses and tool boxes on the fenders
5 - 5
<
>

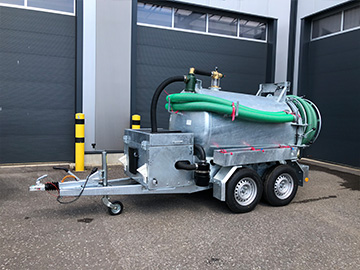

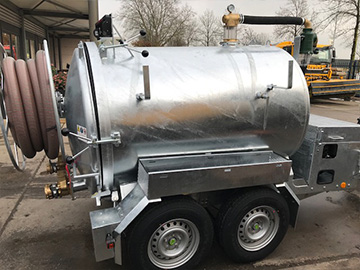

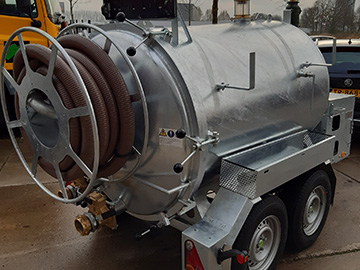

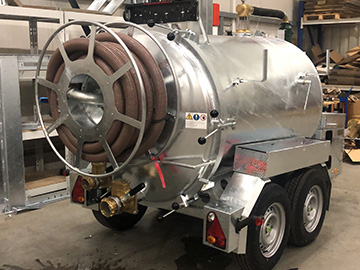

M-VAC 2000 (2.0 m³ with hose reel, 3,500 kg undercarriage)
The M-VAC 2000 with hose reel is designed for various applications. Thanks to the 25m long suction hose, operations sites are easy to reach.
The in-built swan neck system prevents liquid from flowing back once the tank is full.
Standard equipment:
- 10-HP Briggs & Stratton motor with E-start
- vacuum compressor with a suction capacity of 3,600 l/min.
- 12 V battery that is charged via the alternator
- Supported reel with 25m suction hose and lockable suction lance

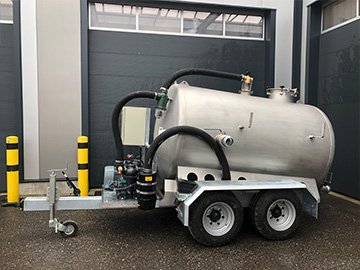

Special structure of a 4,000-liter vacuum tank made of stainless steel
With over-suction protection and siphon separator
Designed for operation with corroding liquids
Compressor with a suction capacity of 9,500 l/min
With manhole at the top and back for easy cleaning

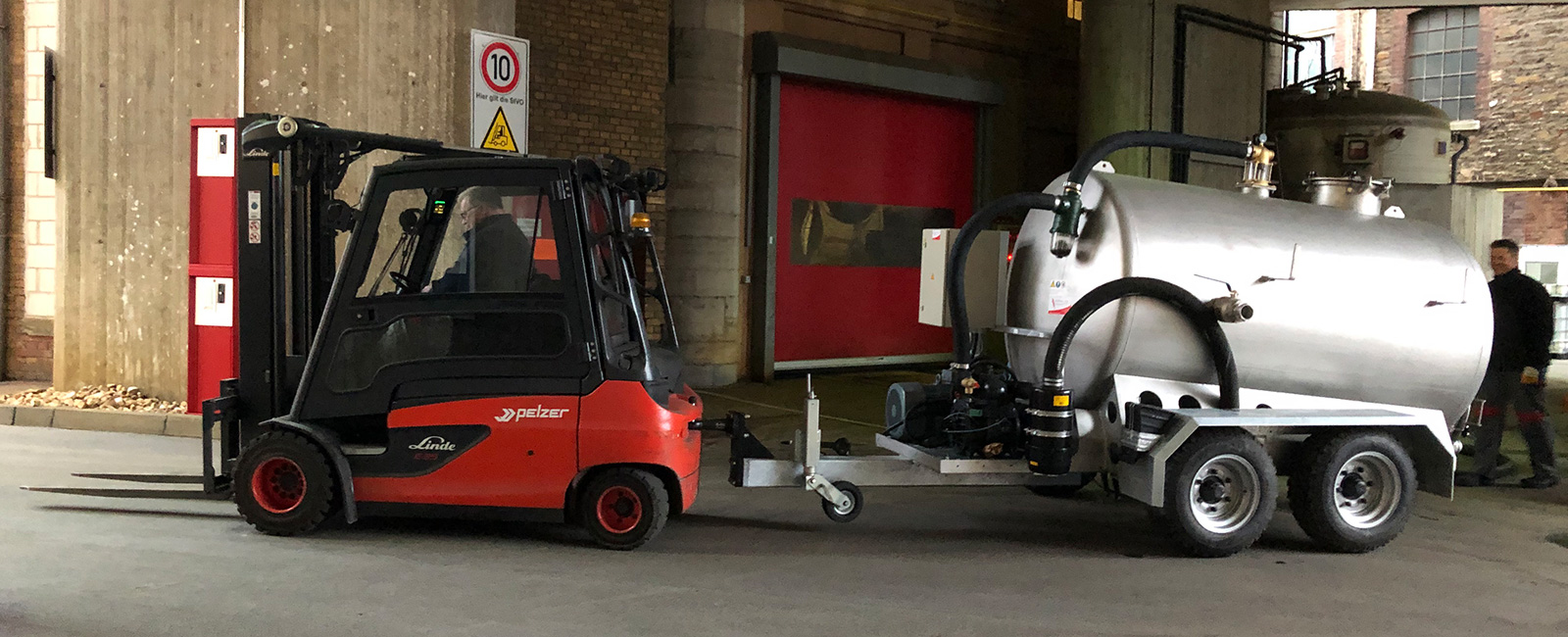

Can be moved on the depot at the operation site
6 - 6
<
>

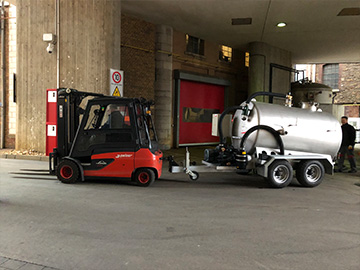

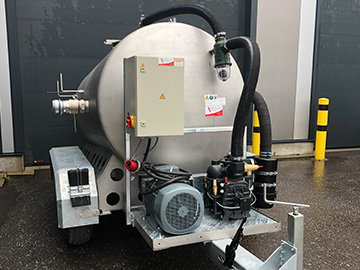

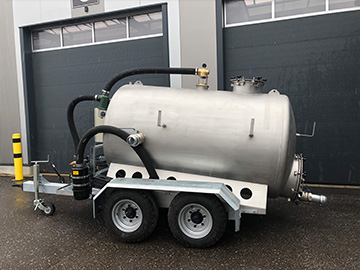

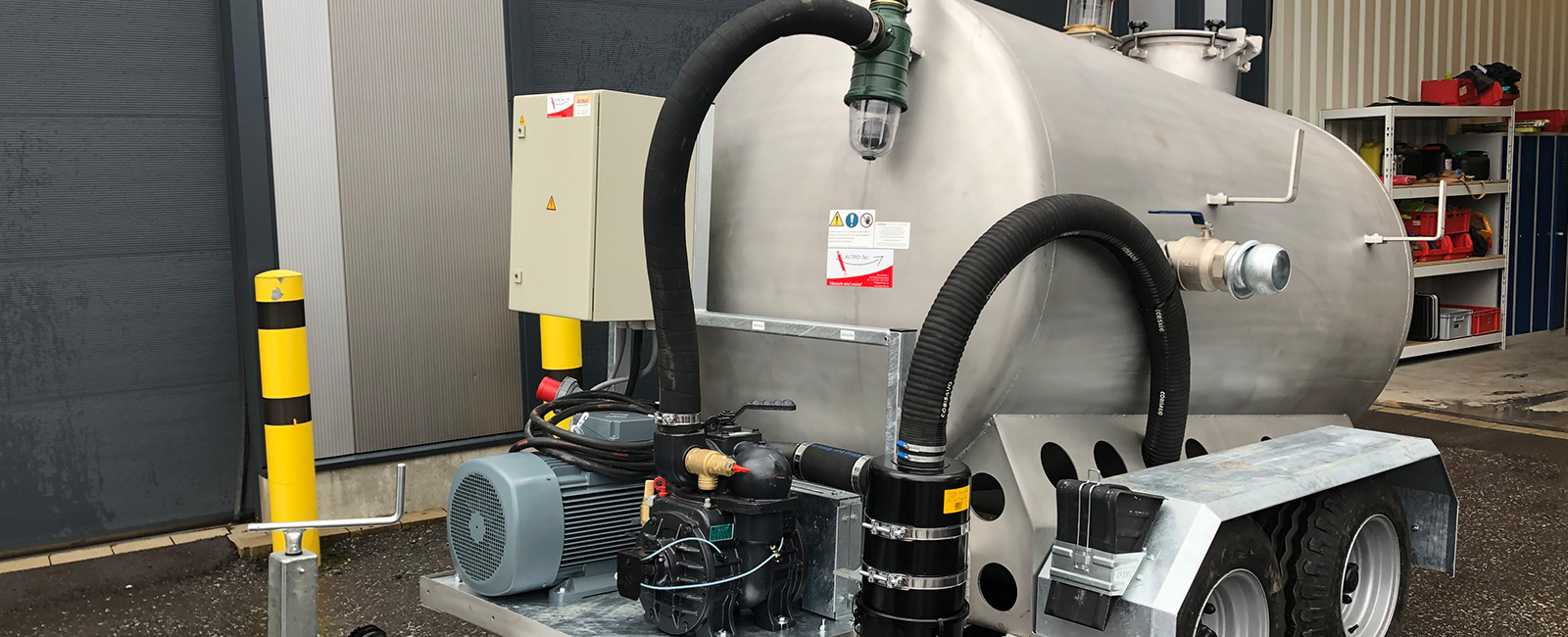

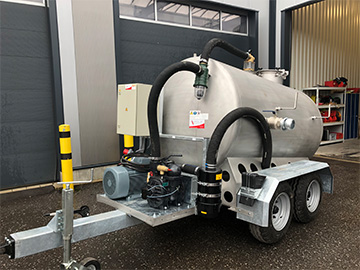

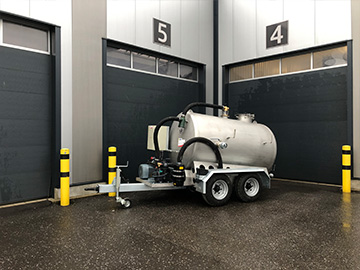

M-VAC 4000 VA (4.0 m³ stainless steel)
The stainless steel M-Vac with a capacity of 4,000 liters was specially designed and constructed for the suction and transport of alkalis and acids in the textile industry.
The 63 A E-motor, which runs with a star-delta connection, drives the compressor with 9,500 l/min air performance.

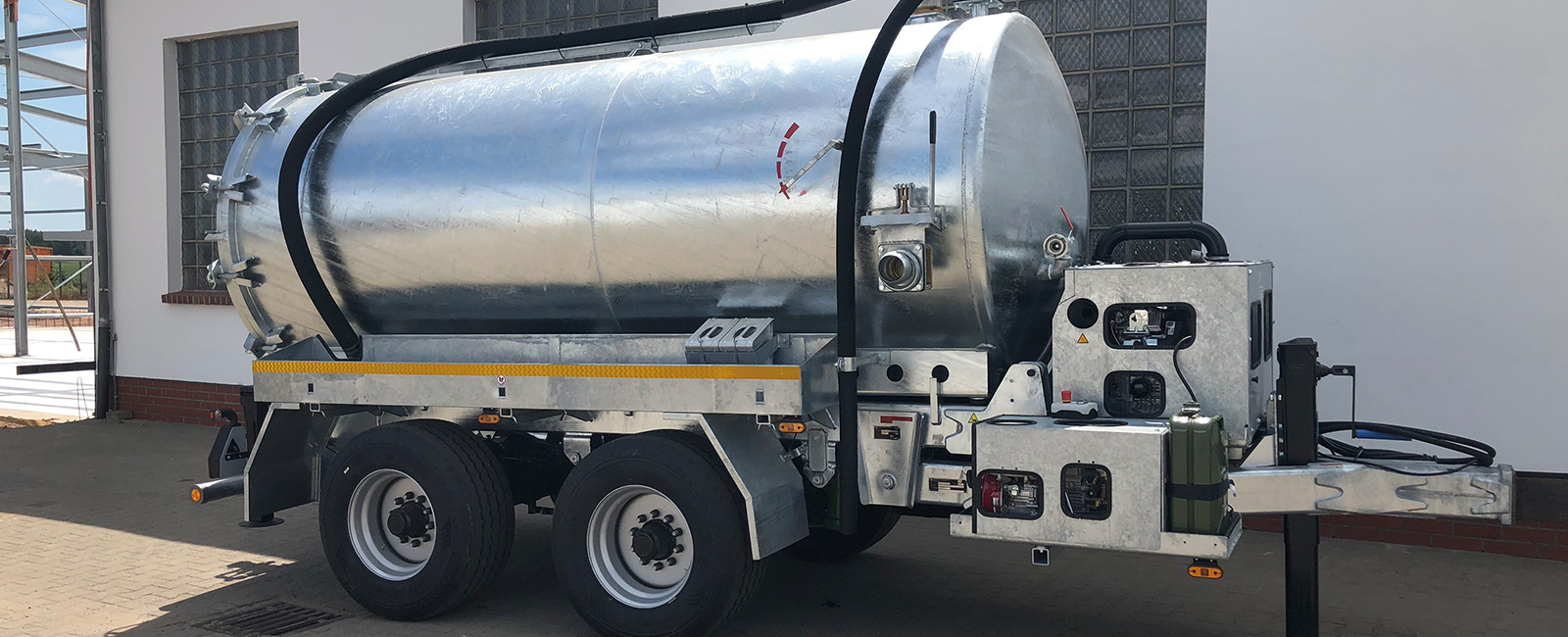

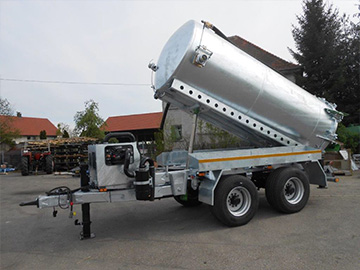

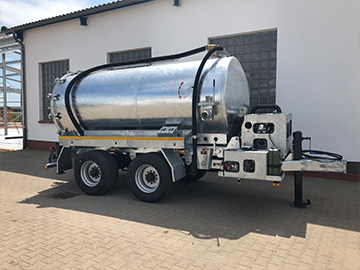

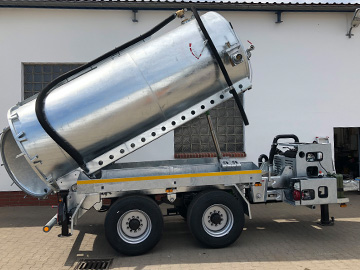

M-Vac 7.0m3 rear tipper with tool boxes on the fenders
With high-pressure cleaner and 1m³ inside water tank

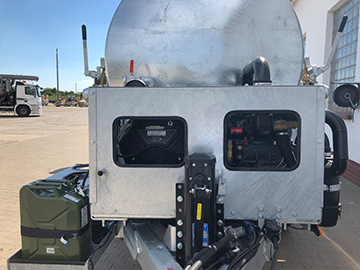

Strong B&S Vanguard motor and 11,000 l/min vacuum compressor
Self-sufficient 12 V electro-hydraulics

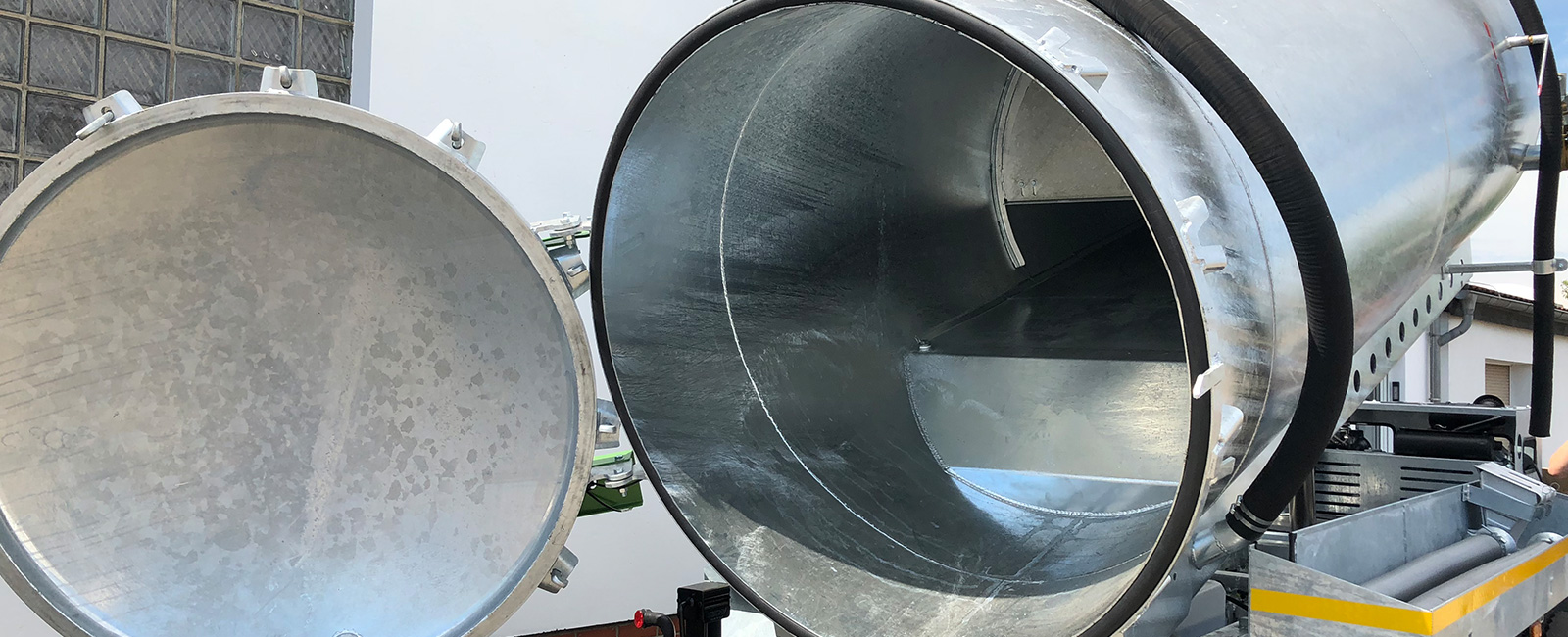

Inside 1m³ water tank with acoustic baffles
5 - 5
<
>
M-VAC 7000 (7.0 m³ capacity)
M-Vac with a capacity of 7,000 liters for the suction and transport of Bentonite drill sludge.
Approved for 80km/h for the operation with a truck.
